CONSTRUCTION STANDARD VALUES [CONSTRUCTION STANDARD VALUES]

id0980c0740300

Front View

4SD

aaxjjb00001144

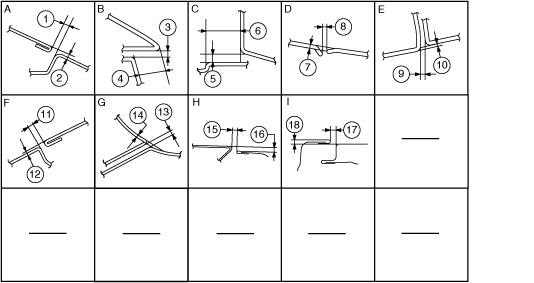

am3zzb00000692

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})

A

1

4.2 {0.17}

5.7 {0.22}

2.7 {0.106}

2.0 {0.079}

2

0

2.0 {0.079}

-2.0 {-0.079}

-

B

3

2.0 {0.079}

3.3 {0.13}

0.7 {0.03}

-

4

1.5 {0.059}

2.8 {0.11}

0.2 {0.008}

-

C

5

1.8 {0.071}

3.3 {0.13}

0.3 {0.01}

-

6

1.7 {0.067}

3.2 {0.13}

0.2 {0.008}

-

D

7

1.8 {0.071}

3.1 {0.12}

0.5 {0.02}

1.3 {0.051}

8

0.9 {0.035}

2.2 {0.085}

-0.4 {-0.016}

-

E

9

0.5 {0.02}

1.3 {0.051}

0.5 {0.02}

-

10

-0.5 {-0.02}

0.2 {0.008}

-1.2 {-0.047}

-

F

11

3.1 {0.12}

4.1 {0.16}

2.1 {0.079}

1.0 {0.039}

12

0

1.0 {0.039}

-1.0 {-0.039}

-

G

13

3.4 {0.13}

4.4 {0.17}

2.4 {0.094}

1.0 {0.039}

14

0

1.5 {0.059}

-1.5 {-0.059}

-

H

15

3.0 {0.12}

4.0 {0.16}

2.3 {0.091}

1.0 {0.039}

16

-0.1 {-0.0039}

0.6 {0.024}

-1.1 {-0.043}

-

I

17

3.3 {0.13}

4.3 {0.17}

2.5 {0.098}

1.0 {0.039}

18

0.2 {0.008}

1.2 {0.047}

-0.8 {-0.032}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Parallelism (mm {in})
A	1	4.2 {0.17}	5.7 {0.22}	2.7 {0.106}	2.0 {0.079}
2	0	2.0 {0.079}	-2.0 {-0.079}	-
B	3	2.0 {0.079}	3.3 {0.13}	0.7 {0.03}	-
4	1.5 {0.059}	2.8 {0.11}	0.2 {0.008}	-
C	5	1.8 {0.071}	3.3 {0.13}	0.3 {0.01}	-
6	1.7 {0.067}	3.2 {0.13}	0.2 {0.008}	-
D	7	1.8 {0.071}	3.1 {0.12}	0.5 {0.02}	1.3 {0.051}
8	0.9 {0.035}	2.2 {0.085}	-0.4 {-0.016}	-
E	9	0.5 {0.02}	1.3 {0.051}	0.5 {0.02}	-
10	-0.5 {-0.02}	0.2 {0.008}	-1.2 {-0.047}	-
F	11	3.1 {0.12}	4.1 {0.16}	2.1 {0.079}	1.0 {0.039}
12	0	1.0 {0.039}	-1.0 {-0.039}	-
G	13	3.4 {0.13}	4.4 {0.17}	2.4 {0.094}	1.0 {0.039}
14	0	1.5 {0.059}	-1.5 {-0.059}	-
H	15	3.0 {0.12}	4.0 {0.16}	2.3 {0.091}	1.0 {0.039}
16	-0.1 {-0.0039}	0.6 {0.024}	-1.1 {-0.043}	-
I	17	3.3 {0.13}	4.3 {0.17}	2.5 {0.098}	1.0 {0.039}
18	0.2 {0.008}	1.2 {0.047}	-0.8 {-0.032}	-

5HB

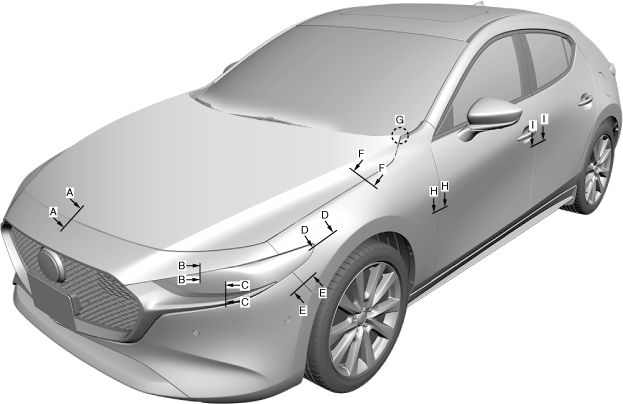

aaxjjb00001146

am3zzb00000692

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})

A

1

4.2 {0.17}

5.7 {0.22}

2.7 {0.106}

2.0 {0.079}

2

0

2.0 {0.079}

-2.0 {-0.079}

-

B

3

2.3 {0.091}

3.6 {0.14}

1.0 {0.039}

-

4

1.5 {0.059}

2.8 {0.11}

0.2 {0.008}

-

C

5

1.8 {0.071}

3.3 {0.13}

0.3 {0.01}

-

6

1.7 {0.067}

3.2 {0.13}

0.2 {0.008}

-

D

7

1.8 {0.071}

3.1 {0.12}

0.5 {0.02}

1.3 {0.051}

8

1.1 {0.043}

2.4 {0.095}

-0.2 {-0.008}

-

E

9

0.5 {0.02}

1.3 {0.051}

0.5 {0.02}

-

10

-0.5 {-0.02}

0.2 {0.008}

-1.2 {-0.047}

-

F

11

3.3 {0.13}

4.3 {0.17}

2.3 {0.091}

1.0 {0.039}

12

-0.1 {-0.0039}

0.9 {0.035}

-1.1 {-0.043}

-

G

13

3.5 {0.14}

4.5 {0.18}

2.5 {0.098}

1.0 {0.039}

14

0

1.5 {0.059}

-1.5 {-0.059}

-

H

15

3.1 {0.12}

4.1 {0.16}

2.4 {0.095}

1.0 {0.039}

16

-0.1 {-0.0039}

0.6 {0.024}

-1.1 {-0.043}

-

I

17

3.4 {0.13}

4.4 {0.17}

2.6 {0.10}

1.0 {0.039}

18

0.2 {0.008}

1.2 {0.047}

-0.8 {-0.032}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Parallelism (mm {in})
A	1	4.2 {0.17}	5.7 {0.22}	2.7 {0.106}	2.0 {0.079}
2	0	2.0 {0.079}	-2.0 {-0.079}	-
B	3	2.3 {0.091}	3.6 {0.14}	1.0 {0.039}	-
4	1.5 {0.059}	2.8 {0.11}	0.2 {0.008}	-
C	5	1.8 {0.071}	3.3 {0.13}	0.3 {0.01}	-
6	1.7 {0.067}	3.2 {0.13}	0.2 {0.008}	-
D	7	1.8 {0.071}	3.1 {0.12}	0.5 {0.02}	1.3 {0.051}
8	1.1 {0.043}	2.4 {0.095}	-0.2 {-0.008}	-
E	9	0.5 {0.02}	1.3 {0.051}	0.5 {0.02}	-
10	-0.5 {-0.02}	0.2 {0.008}	-1.2 {-0.047}	-
F	11	3.3 {0.13}	4.3 {0.17}	2.3 {0.091}	1.0 {0.039}
12	-0.1 {-0.0039}	0.9 {0.035}	-1.1 {-0.043}	-
G	13	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
14	0	1.5 {0.059}	-1.5 {-0.059}	-
H	15	3.1 {0.12}	4.1 {0.16}	2.4 {0.095}	1.0 {0.039}
16	-0.1 {-0.0039}	0.6 {0.024}	-1.1 {-0.043}	-
I	17	3.4 {0.13}	4.4 {0.17}	2.6 {0.10}	1.0 {0.039}
18	0.2 {0.008}	1.2 {0.047}	-0.8 {-0.032}	-

Rear View

4SD

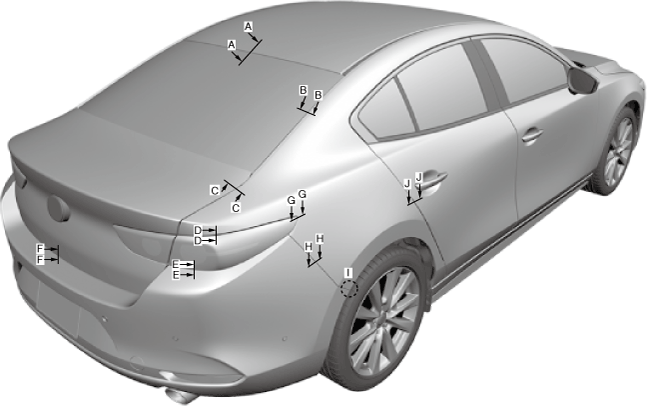

aaxjjb00001147

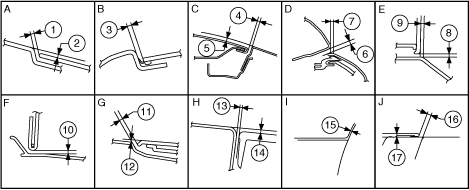

am3zzb00000695

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})

A

1

0

0.5 {0.02}

-

-

2

2.0 {0.079}

3.8 {0.15}

0.2 {0.008}

-

B

3

0

0.5 {0.02}

-

-

C

4

3.0 {0.12}

4.0 {0.16}

2.0 {0.079}

1.0 {0.039}

5

-0.6 {-0.024}

0.4 {0.016}

-1.6 {-0.063}

-

D

6

1.8 {0.071}

3.0 {0.12}

0.6 {0.02}

1.2 {0.047}

7

2.6 {0.10}

4.1 {0.16}

1.1 {0.043}

-

E

8

1.8 {0.071}

3.3 {0.13}

0.3 {0.01}

-

9

-0.5 {-0.02}

1.0 {0.039}

-2.0 {-0.079}

-

F

10

6.1 {0.24}

8.1 {0.32}

4.1 {0.16}

2.0 {0.079}

G

11

1.8 {0.071}

3.3 {0.13}

0.3 {0.01}

-

12

1.9 {0.075}

3.4 {0.13}

0.4 {0.016}

-

H

13

0.5 {0.02}

1.3 {0.051}

0.5 {0.02}

-

14

-0.5 {-0.02}

0.2 {0.008}

-1.2 {-0.047}

-

I

15

-0.3 {-0.01}

1.2 {0.047}

-1.8 {-0.071}

-

J

16

3.0 {0.12}

4.0 {0.16}

2.0 {0.079}

1.0 {0.039}

17

0

1.0 {0.039}

-1.0 {-0.039}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Parallelism (mm {in})
A	1	0	0.5 {0.02}	-	-
2	2.0 {0.079}	3.8 {0.15}	0.2 {0.008}	-
B	3	0	0.5 {0.02}	-	-
C	4	3.0 {0.12}	4.0 {0.16}	2.0 {0.079}	1.0 {0.039}
5	-0.6 {-0.024}	0.4 {0.016}	-1.6 {-0.063}	-
D	6	1.8 {0.071}	3.0 {0.12}	0.6 {0.02}	1.2 {0.047}
7	2.6 {0.10}	4.1 {0.16}	1.1 {0.043}	-
E	8	1.8 {0.071}	3.3 {0.13}	0.3 {0.01}	-
9	-0.5 {-0.02}	1.0 {0.039}	-2.0 {-0.079}	-
F	10	6.1 {0.24}	8.1 {0.32}	4.1 {0.16}	2.0 {0.079}
G	11	1.8 {0.071}	3.3 {0.13}	0.3 {0.01}	-
12	1.9 {0.075}	3.4 {0.13}	0.4 {0.016}	-
H	13	0.5 {0.02}	1.3 {0.051}	0.5 {0.02}	-
14	-0.5 {-0.02}	0.2 {0.008}	-1.2 {-0.047}	-
I	15	-0.3 {-0.01}	1.2 {0.047}	-1.8 {-0.071}	-
J	16	3.0 {0.12}	4.0 {0.16}	2.0 {0.079}	1.0 {0.039}
17	0	1.0 {0.039}	-1.0 {-0.039}	-

5HB

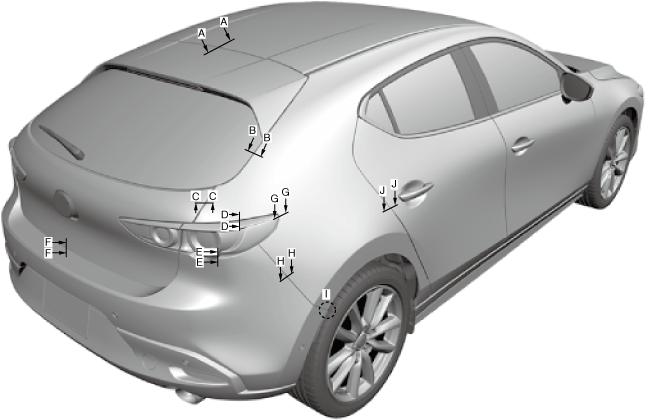

aaxjjb00001148

am3zzb00000697

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})

A

1

6.0 {0.24}

7.5 {0.30}

4.5 {0.18}

-

2

-1.0 {-0.039}

0.5 {0.02}

-2.5 {-0.098}

-

B

3

4.5 {0.18}

6.6 {0.26}

2.4 {0.095}

2.0 {0.079}

4

-4.4 {-0.18}

-2.2 {-0.087}

-6.6 {-0.26}

-

C

5

4.5 {0.18}

5.5 {0.22}

3.5 {0.14}

1.0 {0.039}

6

-0.1 {-0.0039}

0.9 {0.035}

-1.1 {-0.043}

-

D

7

1.8 {0.071}

3.0 {0.12}

0.6 {0.024}

1.2 {0.047}

8

1.7 {0.067}

3.2 {0.13}

0.2 {0.008}

-

E

9

1.8 {0.071}

3.3 {0.13}

0.3 {0.012}

-

F

10

6.0 {0.24}

8.0 {0.32}

4.0 {0.16}

2.0 {0.079}

G

11

1.8 {0.071}

3.0 {0.13}

0.6 {0.024}

1.2 {0.047}

12

0.2 {0.008}

1.7 {0.067}

-1.3 {-0.051}

-

H

13

0.5 {0.02}

1.3 {0.051}

0.5 {0.02}

-

14

-0.6 {-0.024}

0.1 {0.0039}

-1.3 {-0.051}

-

I

15

-0.3 {-0.12}

1.2 {0.047}

-1.8 {-0.071}

-

J

16

2.9 {0.11}

3.9 {0.15}

1.9 {0.075}

1.0 {0.039}

17

0

1.0 {0.039}

-1.0 {-0.039}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Parallelism (mm {in})
A	1	6.0 {0.24}	7.5 {0.30}	4.5 {0.18}	-
A	2	-1.0 {-0.039}	0.5 {0.02}	-2.5 {-0.098}	-
B	3	4.5 {0.18}	6.6 {0.26}	2.4 {0.095}	2.0 {0.079}
B	4	-4.4 {-0.18}	-2.2 {-0.087}	-6.6 {-0.26}	-
C	5	4.5 {0.18}	5.5 {0.22}	3.5 {0.14}	1.0 {0.039}
C	6	-0.1 {-0.0039}	0.9 {0.035}	-1.1 {-0.043}	-
D	7	1.8 {0.071}	3.0 {0.12}	0.6 {0.024}	1.2 {0.047}
D	8	1.7 {0.067}	3.2 {0.13}	0.2 {0.008}	-
E	9	1.8 {0.071}	3.3 {0.13}	0.3 {0.012}	-
F	10	6.0 {0.24}	8.0 {0.32}	4.0 {0.16}	2.0 {0.079}
G	11	1.8 {0.071}	3.0 {0.13}	0.6 {0.024}	1.2 {0.047}
G	12	0.2 {0.008}	1.7 {0.067}	-1.3 {-0.051}	-
H	13	0.5 {0.02}	1.3 {0.051}	0.5 {0.02}	-
H	14	-0.6 {-0.024}	0.1 {0.0039}	-1.3 {-0.051}	-
I	15	-0.3 {-0.12}	1.2 {0.047}	-1.8 {-0.071}	-
J	16	2.9 {0.11}	3.9 {0.15}	1.9 {0.075}	1.0 {0.039}
J	17	0	1.0 {0.039}	-1.0 {-0.039}	-
