i-stop CONTROL

id111100000100


i-stop Control Outline


Without Mazda M Hybrid (ATX)

SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5

am3zzn00009299
am3zzn00009300

SKYACTIV-D 1.8

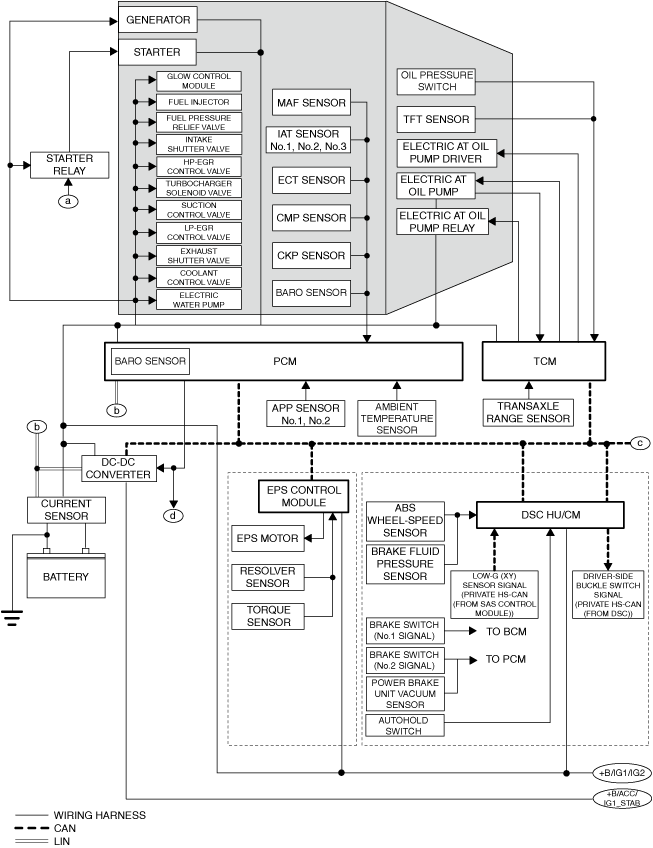

am3zzn00009301

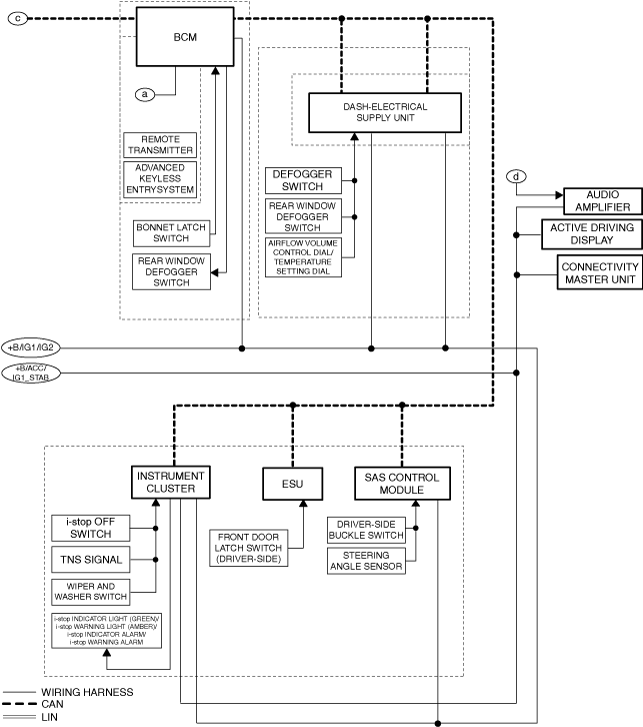

am3zzn00009302


Without Mazda M Hybrid (MTX)

SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5

am3zzn00009303

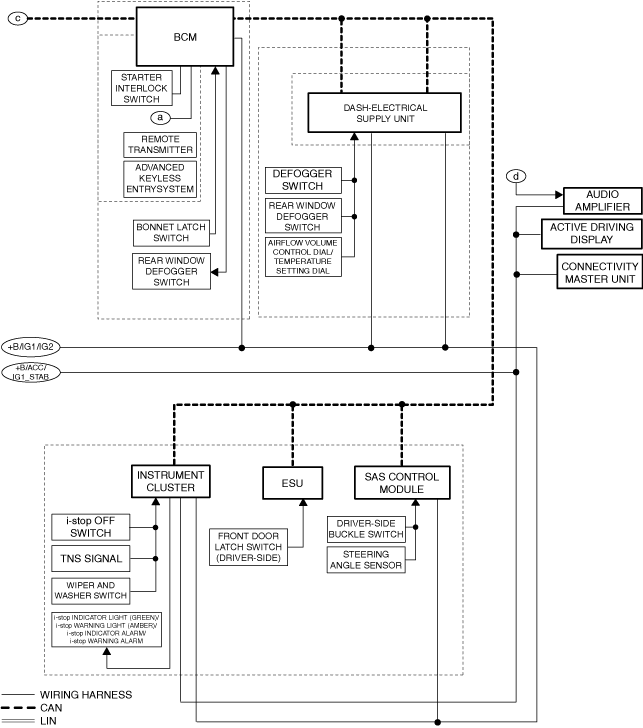

am3zzn00009304

SKYACTIV-D 1.8

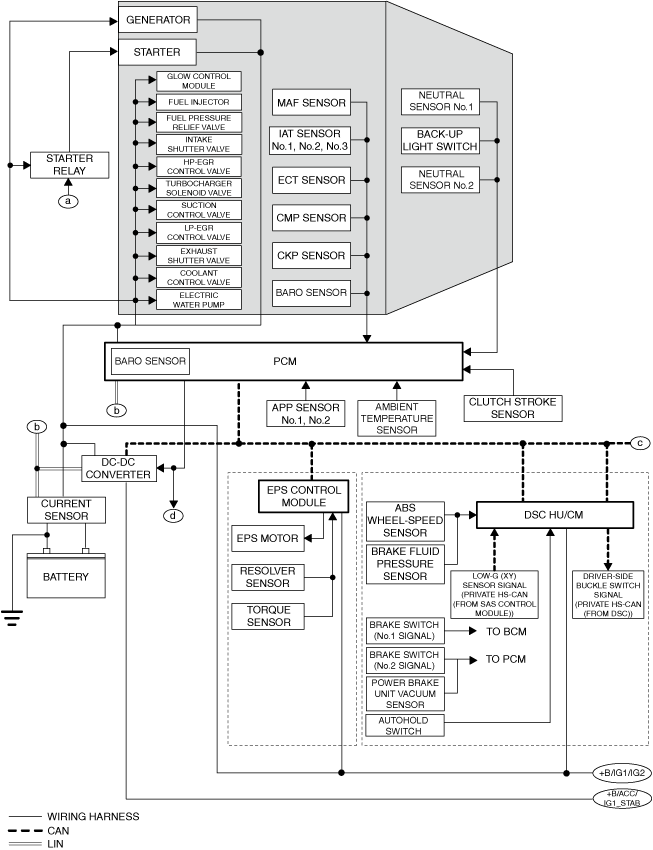

am3zzn00009305
am3zzn00009306


With Mazda M Hybrid (ATX)

am3zzn00010171

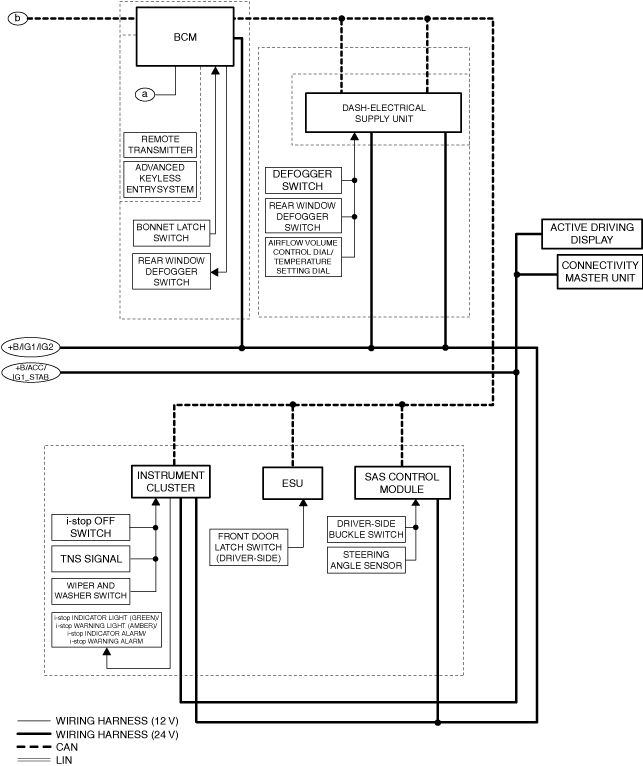

am3zzn00009524

*  :With SKYACTIV-X 2.0

With Mazda M Hybrid (MTX)

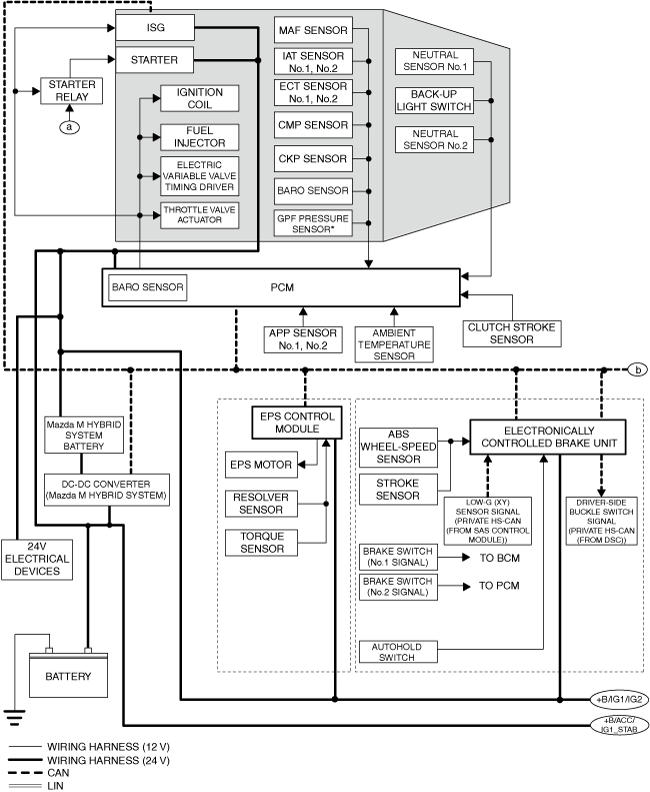

am3zzn00010170

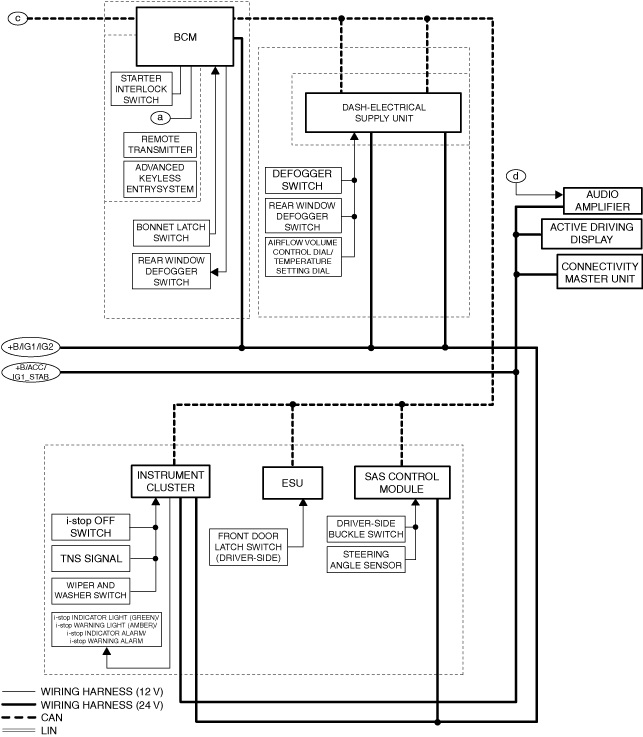

am3zzn00008906

*  :With SKYACTIV-X 2.0
