DTC U3000:04 [360°VIEW MONITOR CONTROLE MODULE]

id1502c4063200

Outline

System malfunction location

360°view monitor control module internal malfunction

Detection condition

•  The 360°view monitor control module detects a 360°view monitor control module internal malfunction.

Fail-safe

(See DTC TABLE [360°VIEW MONITOR CONTROL MODULE (E)].)

Possible cause

•  360°view monitor control module malfunction

•  Front camera malfunction

•  Side camera (LH) malfunction

•  Side camera (RH) malfunction

•  Rear mount camera malfunction

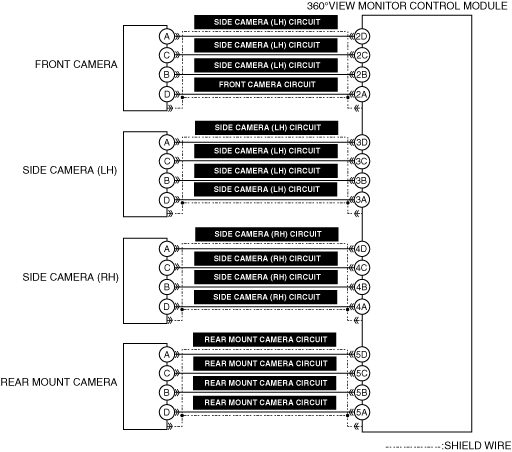

•  Short to ground in any of the following circuits.

―  Front camera circuit

―  Side camera (LH) circuit

―  Side camera (RH) circuit

―  Rear mount camera circuit

•  Short to power supply in any of the following circuits.

―  Front camera circuit

―  Side camera (LH) circuit

―  Side camera (RH) circuit

―  Rear mount camera circuit

•  Open circuit in the any of the following circuits.

―  Front camera circuit

―  Side camera (LH) circuit

―  Side camera (RH) circuit

―  Rear mount camera circuit

Connector diagram

Not applicable

System malfunction location	360°view monitor control module internal malfunction
Detection condition	• The 360°view monitor control module detects a 360°view monitor control module internal malfunction.
Fail-safe	(See DTC TABLE [360°VIEW MONITOR CONTROL MODULE (E)].)
Possible cause	• 360°view monitor control module malfunction • Front camera malfunction • Side camera (LH) malfunction • Side camera (RH) malfunction • Rear mount camera malfunction • Short to ground in any of the following circuits. ― Front camera circuit ― Side camera (LH) circuit ― Side camera (RH) circuit ― Rear mount camera circuit • Short to power supply in any of the following circuits. ― Front camera circuit ― Side camera (LH) circuit ― Side camera (RH) circuit ― Rear mount camera circuit • Open circuit in the any of the following circuits. ― Front camera circuit ― Side camera (LH) circuit ― Side camera (RH) circuit ― Rear mount camera circuit

Connector diagram	Not applicable

Diagnostic Procedure

Step

Inspection

Results

Action

1

INSPECT FOR OTHER RELATED DTCs

•  Perform the DTC inspection for the 360°view monitor control module.
(See DTC INSPECTION.)

•  Are any of the following DTCs displayed?

―  B12BD:01

―  B12BD:02

―  B12C0:01

―  B12C0:02

―  B12C1:01

―  B12C1:02

―  B148E:01

―  B148E:02

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC B12BD:01 [360°VIEW MONITOR CONTROLE MODULE].)

(See DTC B12BD:02 [360°VIEW MONITOR CONTROLE MODULE].)

(See DTC B12C0:01 [360°VIEW MONITOR CONTROLE MODULE].)

(See DTC B12C0:02 [360°VIEW MONITOR CONTROLE MODULE].)

(See DTC B12C1:01 [360°VIEW MONITOR CONTROLE MODULE].)

(See DTC B12C1:02 [360°VIEW MONITOR CONTROLE MODULE].)

(See DTC B148E:01 [360°VIEW MONITOR CONTROLE MODULE].)

(See DTC B148E:02 [360°VIEW MONITOR CONTROLE MODULE].)

No

Go to the next step.

2

INSPECT 360°VIEW MONITOR CONTROL MODULE FOR MALFUNCTION

•  Clear the DTC recorded in the memory.
(See CLEARING DTC.)

•  Perform the DTC inspection for the 360°view monitor control module.
(See DTC INSPECTION.)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].)

If the CAN communication is normal, replace the 360°view monitor control module and perform the repair completion verification.

(See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION [(E)].)

No

Go to the next step.

Repair completion verification

VERIFY IF OTHER DTC IS DISPLAYED

•  Perform the DTC inspection.
(See DTC INSPECTION.)

•  Are any other DTCs displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	INSPECT FOR OTHER RELATED DTCs • Perform the DTC inspection for the 360°view monitor control module. (See DTC INSPECTION.) • Are any of the following DTCs displayed? ― B12BD:01 ― B12BD:02 ― B12C0:01 ― B12C0:02 ― B12C1:01 ― B12C1:02 ― B148E:01 ― B148E:02	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC B12BD:01 [360°VIEW MONITOR CONTROLE MODULE].) (See DTC B12BD:02 [360°VIEW MONITOR CONTROLE MODULE].) (See DTC B12C0:01 [360°VIEW MONITOR CONTROLE MODULE].) (See DTC B12C0:02 [360°VIEW MONITOR CONTROLE MODULE].) (See DTC B12C1:01 [360°VIEW MONITOR CONTROLE MODULE].) (See DTC B12C1:02 [360°VIEW MONITOR CONTROLE MODULE].) (See DTC B148E:01 [360°VIEW MONITOR CONTROLE MODULE].) (See DTC B148E:02 [360°VIEW MONITOR CONTROLE MODULE].)
1		No	Go to the next step.
2	INSPECT 360°VIEW MONITOR CONTROL MODULE FOR MALFUNCTION • Clear the DTC recorded in the memory. (See CLEARING DTC.) • Perform the DTC inspection for the 360°view monitor control module. (See DTC INSPECTION.) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [(E)].) If the CAN communication is normal, replace the 360°view monitor control module and perform the repair completion verification. (See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION [(E)].)
2		No	Go to the next step.
Repair completion verification	VERIFY IF OTHER DTC IS DISPLAYED • Perform the DTC inspection. (See DTC INSPECTION.) • Are any other DTCs displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification		No	DTC troubleshooting completed.
