360°VIEW MONITOR CONTROL MODULE
id151100004400
Purpose
• The 360° view monitor control module controls the front camera, side cameras (LH, RH) and the rear mount camera based on the input signals from each unit and the 360° view monitor switch.
Function
Camera display function
-
• The 360° view monitor control module calculates the top view image based on the video signals from each camera and sends a video signal to the connectivity master unit (CMU).
Top view / Front view, Top view / Front wide view, Side view off timer function
-
• If a maximum of 270 seconds have elapsed since the display of the top view/front view, top view/front wide view, and side view screen began, the 360° view monitor control module sends a video display cancel signal to the connectivity master unit (CMU).
Pedestrian recognition
-
• The 360° view monitor control module recognizes the pedestrian based on the video signals from rear mount camera.
Structural

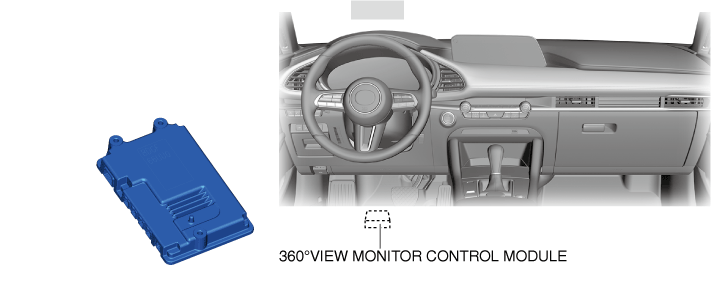

• The 360° view monitor control module is located under the front driver’s seat.
Operation
• For the 360° view monitor control module operation, refer to the [360° VIEW MONITOR SYSTEM].(See
360°VIEW MONITOR SYSTEM.)
