360°VIEW MONITOR SYSTEM CAMERA

id151100006300

FRONT CAMERA

Purpose

• The front camera assures visibility at the front of the vehicle.

Function

• The front camera sends a video signal to the 360° view monitor control module.

Structural

• The front camera is located in the center of the radiator grille.

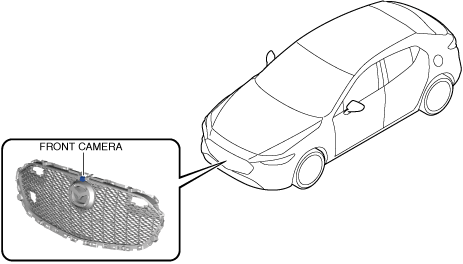

am3zzn00008357

Operation

• For the front camera operation, refer to [360° VIEW MONITOR SYSTEM]. (See 360°VIEW MONITOR SYSTEM)

SIDE CAMERA

Purpose

• The side cameras assure visibility at the sides of the vehicle.

Function

• The rear mount cameras send a video signal to the 360° view monitor control module.

Structural

• The side cameras are located on the outer mirrors.

am3zzn00008358

Operation

• For the side camera operation, refer to [360° VIEW MONITOR SYSTEM]. (See 360°VIEW MONITOR SYSTEM)

REAR MOUNT CAMERA

Purpose

• The rear mount camera assures visibility at the rear of the vehicle where direct, visual verification from the driver’s seat is not possible.

Function

• The front camera sends a video signal to the 360° view monitor control module.

Structural

• The rear mount camera is located on the trunk lid/liftgate garnish.

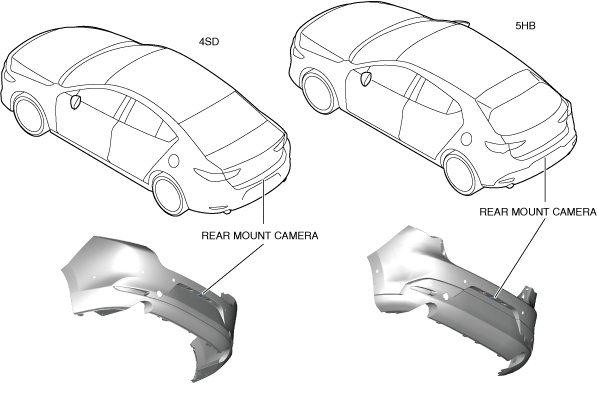

am3zzn00008674

Operation

• For the rear mount camera operation, refer to [360° VIEW MONITOR SYSTEM]. (See 360°VIEW MONITOR SYSTEM)
