DRIVER MONITORING CAMERA


id151100006400


Purpose

•  The driver monitoring camera monitors the orientation of the driver’s head, face, eyes, and opening level of eye and mouth.

Function

•  The driver monitoring camera sends a video signal to the driver monitoring camera unit.

Structural

•  The driver monitoring camera is integrated with the center display.
am3zzn00008675
Note
•  Aiming is not necessary when you remove and install the center display.

Operation

•  For the driver monitoring camera operation, refer to [DRIVER MONITORING (DM)]. (See DRIVER MONITORING (DM))
DRIVER MONITORING CAMERA LED

Purpose

•  The driver monitoring camera LED assist the monitoring under adverse conditions such as at night or in direct sunlight.

Function

•  The driver monitoring camera LED illuminates the driver with infrared light based on the signal from the driver monitoring camera unit.

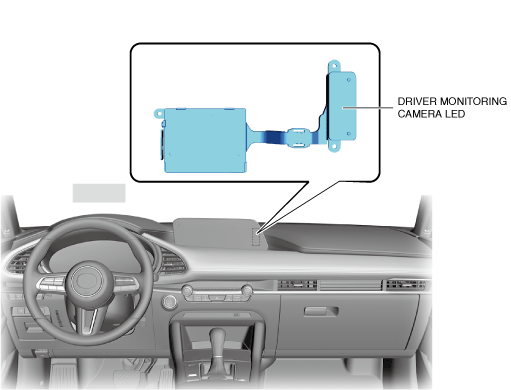

Structural

•  The driver monitoring camera is located in the right side of the center display.
am3zzn00008676

Operation

•  For the driver monitoring camera operation, refer to [DRIVER MONITORING (DM)]. (See DRIVER MONITORING (DM))
