CRUISE CONTROL SWITCH [(E)]

id1512000010a4


Purpose

•  The cruise control switch can switch the Mazda Radar Cruise Control (MRCC) system and the Cruising & Traffic Support (CTS) system, Adjustable Speed Limiter (ASL) and Intelligent Speed Assistance (ISA) on/off and perform various settings.

Function

•  The cruise control switch sends electric signals for each switch operation to the instrument cluster via the clock spring.

Construction

•  Installed to right-hand spoke of the steering wheel.

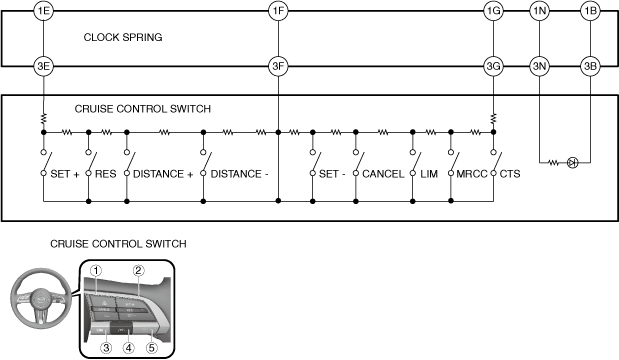

Function of Buttons

am3zzn00009551

No.

Name

Function
1
DISTANCE switch
Sets the distance between vehicles for the headway control (4 stages: Long, medium, short, extremely short)
CANCEL switch
Temporarily cancels the MRCC/CTS/ASL/ISA system
2
SET + switch
•  Sets vehicle speed
•  Increases set vehicle speed
―  Increases speed in approx. 1 km/h {0.6 mph}increments each time switch is short pressed
―  Increases speed in approx. 10 km/h {6.2 mph}increments each time switch is long pressed
SET - switch
•  Sets vehicle speed
•  Decreases set vehicle speed
―  Decreases speed in approx. 1 km/h {0.6 mph}increments each time switch is short pressed
―  Decreases speed in approx. 10 km/h {6.2 mph}increments each time switch is long pressed
RES switch
Resumes the recorded set vehicle speed and begins control.
3
LIM switch
Turns on the ASL/ISA system
4
CTS switch
Turns on the CTS system (while CTS system off)
Turns off the CTS system (while CTS system on)
5
MRCC switch
Turns on the MRCC system (while MRCC system off)
Turns off the MRCC system (while MRCC system on)
