360°VIEW MONITOR SWITCH
id151200004500
Purpose
• The 360° view monitor switch switches the view monitor between display/do not display of the top view/front view, front wide view, and side views.
Function

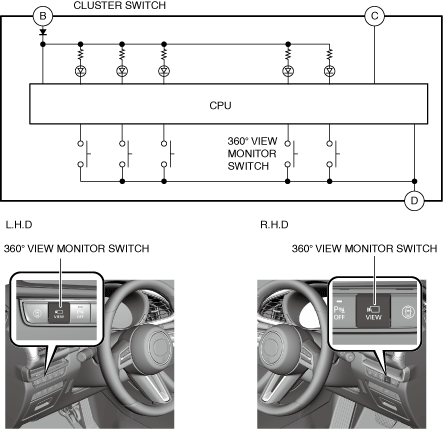

• The 360° view monitor switch sends a switch operation signal to the instrument cluster by using LIN communication.
Structural
• The 360° view monitor switch is built into the cluster switch.
