SIDE CAMERA REMOVAL/INSTALLATION


id152000009800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(E)].)

2.  Remove the following parts:

(1)  Outer mirror glass (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)
(2)  Outer mirror garnish (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION [(E)].)
(3)  Lower outer mirror garnish (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION [(E)].)

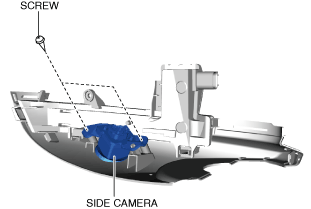

3.  Remove the screws.

am3zzw00022247

4.  Remove the side camera.

5.  Install in the reverse order of removal.

6.  Perform side camera aiming. (See 360°VIEW MONITOR SYSTEM AIMING.)
