COMMANDER SWITCH [(E)]

id1600000019a2

Note

• iPod, iPhone, and Apple CarPlay are registered trademarks of Apple Inc.

• Android, and Android Auto are registered trademarks of Google LLC.

Purpose, Function

• Volume can be adjusted and the center display can be operated without the driver having to change posture.

• The commander switch consists of the following buttons, dial, and knobs.

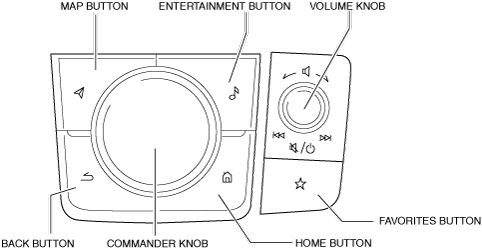

L.H.D.

bmcozp00000402

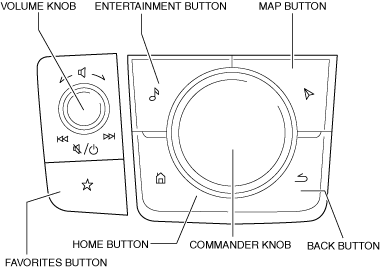

R.H.D.

bmcozp00000508

Button/knob/dial name

Function

AUDIO button

Switches the display screen of the center display to the entertainment screen.

HOME button

•  Switches the display screen of the center display to the home screen.

•  When the HOME button is pressed and held, the display screen of the center display switches to the Apple CarPlay™ home screen.

•  When the HOME button is pressed and held, the display screen of the center display switches to the Android Auto™ home screen.

NAV button (With car-navigation system)

Switches the display screen of the center display to the navigation screen.

BACK button

Switches to the screen directly previous to the currently displayed screen.

FAVORITES button

•  Displays favorites in the center display.

•  When the button is long-pressed with the screen to be added to the favorites displayed, the target is added to the favorites.

Volume dial

•  When the volume dial is rotated, the volume can be adjusted.

•  When the volume dial is pressed, the volume can be muted. Pressing again after muting returns to previous volume level.

Commander knob (tilt^*1)

Moves the selection area on the center display screen. The selection area can be tilted in the lateral direction for left/right, and the longitudinal direction for forward/back.

Commander knob (rotation)

Moves the selection area on the center display screen. The selection area moves according to the rotation direction.

Commander knob (click^*2)

•  Switches to the selected menu screen.

•  Launches the selected menu.

Button/knob/dial name	Function
AUDIO button	Switches the display screen of the center display to the entertainment screen.
HOME button	• Switches the display screen of the center display to the home screen. • When the HOME button is pressed and held, the display screen of the center display switches to the Apple CarPlay™ home screen. • When the HOME button is pressed and held, the display screen of the center display switches to the Android Auto™ home screen.
NAV button (With car-navigation system)	Switches the display screen of the center display to the navigation screen.
BACK button	Switches to the screen directly previous to the currently displayed screen.
FAVORITES button	• Displays favorites in the center display. • When the button is long-pressed with the screen to be added to the favorites displayed, the target is added to the favorites.
Volume dial	• When the volume dial is rotated, the volume can be adjusted. • When the volume dial is pressed, the volume can be muted. Pressing again after muting returns to previous volume level.
Commander knob (tilt^*1)	Moves the selection area on the center display screen. The selection area can be tilted in the lateral direction for left/right, and the longitudinal direction for forward/back.
Commander knob (rotation)	Moves the selection area on the center display screen. The selection area moves according to the rotation direction.
Commander knob (click^*2)	• Switches to the selected menu screen. • Launches the selected menu.

*1 :Tilting of the commander knob forward/back, left/right.

*2 :Press the commander knob.

Construction

• The commander switch is positioned in the upper part of the rear console.

bmcozp00000403
