DTC B1A32:12 [CONNECTIVITY MASTER UNIT]

id1602a1006600

Outline

System malfunction location

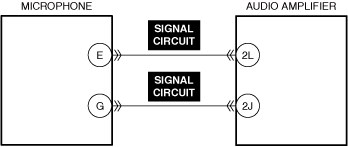

Microphone signal circuit malfunction

Detection condition

•  The audio amplifier detects a short to power supply in the microphone signal circuit for 30 s.

Fail-safe

Not applicable

Possible cause

•  Microphone connector or terminal malfunction

•  Audio amplifier connector or terminal malfunction

•  Short to power supply in microphone signal circuit

•  Microphone malfunction

•  Audio amplifier malfunction

•  Connectivity master unit (CMU) malfunction

System malfunction location	Microphone signal circuit malfunction
Detection condition	• The audio amplifier detects a short to power supply in the microphone signal circuit for 30 s.
Fail-safe	Not applicable
Possible cause	• Microphone connector or terminal malfunction • Audio amplifier connector or terminal malfunction • Short to power supply in microphone signal circuit • Microphone malfunction • Audio amplifier malfunction • Connectivity master unit (CMU) malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

VERIFY REPEATABILITY

•  Switch the ignition ON (engine off or on).

•  Clear the DTC recorded in the memory.
(Refer to the [CLEARING DTC] in the workshop manual)

•  Switch the ignition OFF, and then switch it ON (engine off or on) and wait for 30 s or more.

•  Perform the DTC inspection for the connectivity master unit (CMU).
(Refer to the [DTC INSPECTION] in the workshop manual)

•  Is the same Pending DTC present?

Yes

Go to the next step.

No

Go to repair completion verification 2.

2

INSPECT MICROPHONE CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(Refer to the [CONNECTOR INSPECTION] in the workshop manual)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

3

INSPECT AUDIO AMPLIFIER CONNECTOR FOR MALFUNCTION

•  Inspect the applicable connector and terminal.
(Refer to the [CONNECTOR INSPECTION] in the workshop manual)

•  Are the connector and terminal normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

4

INSPECT MICROPHONE SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY

•  Inspect the applicable circuit for a short to power supply.
(Refer to the [CIRCUIT INSPECTION] in the workshop manual)

•  Is the part normal?

Yes

Go to the next step.

No

Repair or replace the malfunctioning location and perform the repair completion verification.

5

INSPECT MICROPHONE FOR MALFUNCTION

•  Perform the [Microphone Inspection] using the diagnostic assist function.
(See DIAGNOSTIC ASSIST FUNCTION [CONNECTIVITY MASTER UNIT (E)].)

•  Is the part normal?

Yes

Replace the audio amplifier and perform the repair completion verification.

(Refer to the [AUDIO AMPLIFIER REMOVAL/INSTALLATION] in the workshop manual)

No

Replace the microphone and perform the repair completion verification.

(Refer to the [MICROPHONE REMOVAL/INSTALLATION] in the workshop manual)

Repair completion verification 1

VERIFY THAT VEHICLE IS REPAIRED

•  Install/connect the part removed/disconnected during the troubleshooting procedure.

•  Clear the DTC recorded in the memory.
(Refer to the [CLEARING DTC] in the workshop manual)

•  Perform the DTC inspection for the connectivity master unit (CMU).
(Refer to the [DTC INSPECTION] in the workshop manual)

•  Is the same Pending DTC present?

Yes

Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error.

(Refer to the [CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW] in the workshop manual)

If the CAN communication is normal, perform the diagnosis from Step 1.

•  If the malfunction recurs, replace the connectivity master unit (CMU), then go to the next step.
(Refer to the [CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION] in the workshop manual)

No

Go to the next step.

Repair completion verification 2

VERIFY IF OTHER DTCs ARE DISPLAYED

•  Perform the DTC inspection.
(Refer to the [DTC INSPECTION] in the workshop manual)

•  Is a DTC displayed?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

No

DTC troubleshooting completed.

Step	Inspection	Results	Action
1	VERIFY REPEATABILITY • Switch the ignition ON (engine off or on). • Clear the DTC recorded in the memory. (Refer to the [CLEARING DTC] in the workshop manual) • Switch the ignition OFF, and then switch it ON (engine off or on) and wait for 30 s or more. • Perform the DTC inspection for the connectivity master unit (CMU). (Refer to the [DTC INSPECTION] in the workshop manual) • Is the same Pending DTC present?	Yes	Go to the next step.
1		No	Go to repair completion verification 2.
2	INSPECT MICROPHONE CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (Refer to the [CONNECTOR INSPECTION] in the workshop manual) • Are the connector and terminal normal?	Yes	Go to the next step.
2		No	Repair or replace the malfunctioning location and perform the repair completion verification.
3	INSPECT AUDIO AMPLIFIER CONNECTOR FOR MALFUNCTION • Inspect the applicable connector and terminal. (Refer to the [CONNECTOR INSPECTION] in the workshop manual) • Are the connector and terminal normal?	Yes	Go to the next step.
3		No	Repair or replace the malfunctioning location and perform the repair completion verification.
4	INSPECT MICROPHONE SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY • Inspect the applicable circuit for a short to power supply. (Refer to the [CIRCUIT INSPECTION] in the workshop manual) • Is the part normal?	Yes	Go to the next step.
4		No	Repair or replace the malfunctioning location and perform the repair completion verification.
5	INSPECT MICROPHONE FOR MALFUNCTION • Perform the [Microphone Inspection] using the diagnostic assist function. (See DIAGNOSTIC ASSIST FUNCTION [CONNECTIVITY MASTER UNIT (E)].) • Is the part normal?	Yes	Replace the audio amplifier and perform the repair completion verification. (Refer to the [AUDIO AMPLIFIER REMOVAL/INSTALLATION] in the workshop manual)
5		No	Replace the microphone and perform the repair completion verification. (Refer to the [MICROPHONE REMOVAL/INSTALLATION] in the workshop manual)
Repair completion verification 1	VERIFY THAT VEHICLE IS REPAIRED • Install/connect the part removed/disconnected during the troubleshooting procedure. • Clear the DTC recorded in the memory. (Refer to the [CLEARING DTC] in the workshop manual) • Perform the DTC inspection for the connectivity master unit (CMU). (Refer to the [DTC INSPECTION] in the workshop manual) • Is the same Pending DTC present?	Yes	Refer to the controller area network (CAN) malfunction diagnosis flow to inspect for a CAN communication error. (Refer to the [CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW] in the workshop manual) If the CAN communication is normal, perform the diagnosis from Step 1. • If the malfunction recurs, replace the connectivity master unit (CMU), then go to the next step. (Refer to the [CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION] in the workshop manual)
Repair completion verification 1		No	Go to the next step.
Repair completion verification 2	VERIFY IF OTHER DTCs ARE DISPLAYED • Perform the DTC inspection. (Refer to the [DTC INSPECTION] in the workshop manual) • Is a DTC displayed?	Yes	Repair the malfunctioning location according to the applicable DTC troubleshooting.
Repair completion verification 2		No	DTC troubleshooting completed.
