CRANKSHAFT OIL CLEARANCE INSPECTION/REPAIR [MZR-CD 2.2]


id0110f2502600

1.  Position a plastigage above the journals in the axial direction.

2.  Install the main bearing cap. (See CYLINDER BLOCK ASSEMBLY (I) [MZR-CD 2.2].)

3.  Remove the main bearing cap. (See CYLINDER BLOCK DISASSEMBLY (II) [MZR-CD 2.2].)

4.  Measure the main journal oil clearance.

•  If it exceeds the maximum specification, replace the main bearing or grind the main journal, and install the oversize bearings so that the specified oil clearance is obtained.

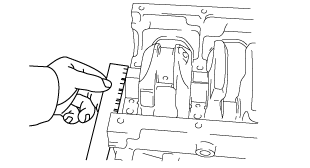

bem5ze00000112
Main journal standard oil clearance
0.025—0.044 mm {0.0010—0.0017 in}
Main journal maximum oil clearance
0.08 mm {0.003 in}
Main bearing thickness
STD: 2.007—2.022 mm {0.07902—0.07960 in}
O.S. 0.25 mm {0.01 in} : 2.129—2.139 mm {0.08382—0.08421 in}
O.S. 0.50 mm {0.02 in}: 2.254—2.264 mm {0.08875—0.08913 in}
O.S. 0.75 mm {0.03 in}: 2.379—2.389 mm {0.09367—0.09405 in}
