ENGINE SPECIFICATIONS [ZY, Z6]
id0100001003f5
Specification
Item |
Specifications |
|||||
---|---|---|---|---|---|---|
ZY |
Z6 |
|||||
MECHANICAL
|
||||||
Type
|
Gasoline, 4-cycle
|
|||||
Cylinder arrangement and number
|
In-line, 4-cylinder
|
|||||
Combustion chamber
|
Pentroof
|
|||||
Valve system
|
DOHC, timing chain driven, 16 valves
|
|||||
Displacement
|
(ml {cc, cu in})
|
1498 {1498, 91.4}
|
1,598 {1,598, 97.5}
|
|||
Bore × stroke
|
(mm {in})
|
78.0 × 78.4 {3.07 × 3.09}
|
78.0 × 83.6 {3.07 × 3.29}
|
|||
Compression ratio
|
10.0:1
|
|||||
Compression pressure
|
(kPa {kgf/cm2, psi}[rpm])
|
1,520 {15.50, 220.5}[300]
|
1,470 {14.99, 213.2}[250]
|
|||
Valve timing
|
IN
|
Open
|
BTDC (°)
|
-9—31
|
-3—37
|
|
Close
|
ABDC (°)
|
19—59
|
13—53
|
|||
EX
|
Open
|
BBDC (°)
|
40
|
|||
Close
|
ATDC (°)
|
-1
|
||||
Valve clearance
|
IN
|
(mm {in})
|
0.27—0.33 {0.0107—0.0129}
[Engine cold]
|
|||
EX
|
0.27—0.33 {0.0107—0.0129}
[Engine cold]
|
|||||
LUBRICATION SYSTEM
|
||||||
Type
|
Force-fed type
|
|||||
Oil pressure (reference value)
[oil temperature: 100°C {212°F}]
|
(kPa {kgf/cm2, psi}[rpm])
|
330—380 {3.36—3.87, 47.8—55.0}
[3,000]
|
||||
Oil pump
|
Type
|
Trochoid gear type
|
||||
Oil cooler
(if equipped)
|
Type
|
—
|
Water-cooled
|
|||
Oil filter
|
Type
|
Full-flow, paper element
|
||||
Bypass pressure
|
(kPa {kgf/cm2, psi})
|
78—118 {0.80—1.20, 12.0—17.1}
|
||||
Oil capacity (approx. quantity)
|
Total (dry engine)
|
(L {US qt, lmp qt})
|
4.2 {4.4, 3.7}
|
|||
Oil replacement
|
(L {US qt, lmp qt})
|
3.7 {3.9, 3.3}
|
||||
Oil and oil filter replacement
|
(L {US qt, lmp qt})
|
3.9 {4.1, 3.4}
|
||||
COOLING SYSTEM
|
||||||
Type
|
Water-cooled, Electromotive
|
|||||
Coolant capacity (approx. quantity)
|
(L {US qt, lmp qt})
|
6.0 {6.3, 5.3}
|
||||
Water pump
|
Centrifugal, V-ribbed belt-driven
|
|||||
Thermostat
|
Type
|
Wax, bottom-bypass
|
||||
Opening temperature
|
(°C {°F})
|
80—84 {176—183}
|
||||
Full-open temperature
|
(°C {°F})
|
95 {203}
|
||||
Full-open lift
|
(mm {in})
|
8.5 {0.33} or more
|
||||
Radiator
|
Type
|
Corrugated fin
|
||||
Cooling system cap
|
Cap valve opening pressure
|
(kPa {kgf/cm2, psi})
|
90—110 {0.92—1.12, 14.0—15.9}
|
|||
Cooling fan
|
Type
|
Electric
|
||||
Number of blades
|
No.1: 7, No.2: 5
|
|||||
Outer diameter
|
(mm {in})
|
320 {12.6}
|
||||
Cooling fan motor output
|
(W)
|
No.1: 70, No.2: 90
|
||||
FUEL SYSTEM
|
||||||
Injector
|
Type
|
Hi-ohmic
|
||||
Type of fuel delivery
|
Top-feed
|
|||||
Type of drive
|
Voltage
|
|||||
Pressure regulator
|
Regulating pressure
|
(kPa {kgf/cm2, psi})
|
approx. 380 {3.87, 55.1}
|
|||
Fuel tank
|
Capacity
|
(L {US gal, lmp gal})
|
55.0 {14.5, 12.1}
|
|||
EMISSION SYSTEM
|
||||||
Catalyst
|
Type
|
WU-TWC (monolith)
TWC (monolith) (Vehicles with TWC)
|
||||
Evaporative emission control system
|
Type
|
Canister type
|
||||
PCV system
|
Type
|
Closed type
|
||||
CHARGING SYSTEM
|
||||||
Battery
|
Voltage
|
(V)
|
12
|
|||
Type and capacity
|
(A·h/5HR, A·h/20HR)
|
75D23L (52, 65)
|
50D20L (40, 45)
50D20L (40, 50)
75D23L (52, 65)
|
|||
Generator
|
Output
|
(V-A)
|
12-100
|
European (L.H.D. U.K.) specs. (except for Israel) : 12-100
General (L.H.D. R.H.D.) specs. and Israel, China : 12-90
|
||
Regulated voltage
|
Controlled by PCM
|
|||||
Self diagnosis function
|
||||||
IGNITION SYSTEM
|
||||||
Ignition system
|
Type
|
SEI
|
||||
Spark advance
|
Electronic
|
|||||
Firing order
|
1—3—4—2 (all cylinders independent firing)
|
|||||
![]() |
||||||
Spark plug
|
Type
|
ZY51 18110
ZYY1 18110
|
European (L.H.D. U.K.)specs. (except for Russia and Israel.) : ZJ46 18110, ZJY6 18110, Z6B7 18110
General (L.H.D. R.H.D.) specs., Russia, Israel, China : BP01 18110 (BKR5E-11), BP02 18110 (K16PR-U11), BP13 18110A, BPY1 18110, BPY2 18110
|
|||
STARTING SYSTEM
|
||||||
Starter
|
Type
|
Coaxial reduction
|
||||
Output
|
(kW)
|
1.0
|
||||
CRUISE CONTROL SYSTEM
|
||||||
Cruise control switch
|
Type
|
Cruise OFF/CANCEL/SET (−)/SET (+)/RESUME/Cruise ON/Neutral
|
||||
ENGINE CONTROL SYSTEM
|
||||||
Neutral switch (MT)
|
Type
|
ON/OFF
|
||||
CPP switch (MT)
|
Type
|
ON/OFF
|
||||
ECT sensor
|
Type
|
Thermistor
|
||||
IAT sensor (Inside MAF sensor)
|
Type
|
Thermistor
|
||||
PCM temperature sensor (Inside PCM)
|
Type
|
Thermistor
|
||||
CKP sensor
|
Type
|
GMR element
|
||||
CMP sensor
|
Type
|
GMR element
|
||||
TP sensor
|
Type
|
Hall element
|
||||
APP sensor
|
Type
|
Hall element
|
||||
Current sensor
|
Type
|
Hall element
|
-
|
|||
MAF sensor
|
Type
|
Hot-wire
|
||||
A/F sensor
|
Type
|
Zirconia element (All-range)
|
||||
HO2S
|
Type
|
Zirconia element (Stoichiometric)
|
||||
MAP sensor
|
Type
|
Piezoelectric element
|
||||
KS
|
Type
|
Piezoelectric element
|
||||
BARO sensor (Inside PCM)
|
Type
|
Piezoelectric element
|
Fuel type
Fuel
|
Research octane number
|
Country
|
Premium unleaded fuel (Conforming to EN 228*1)
|
95 or above
|
New Caledonia, Turkey, Israel, Canary Islands, Reunion, Morocco, Austria, Greece, Italy, Switzerland, Belgium, Denmark, Finland, Norway, Portugal, Spain, Sweden, Hungary, Germany, Poland, Bulgaria, Luxembourg, Slovakia, Russia, Belarus, France, Ukraine, Czech, Faeroe, Iceland, Romania, The Netherlands, Slovenia, Croatia, Macedonia, Bosnia-Hercegovina, Serbia, Montenegro, Albania, Moldova, Guadalupe, Martinique, F.Guiana, Latvia, Lithuania, Estonia, Taiwan, Tahiti, Vanuatu, Kuwait, Oman, Qatar, Saudi Arabia, Uae, Bahrain, Lebanon, Jordan, Iran, Libya, El Salvador, Panama, Honduras, Nicaragua, Singapore, Hong Kong, Brunei, Macau, Sri Lanka, South Africa, Mauritius, Zimbabwe Antigua, Trinidad and Tobago, Cyprus, Malta, Ireland, Uk
|
Regular unleaded fuel (Conforming to Fuel Quality Standards Act 2000*2)
|
90 or above
|
Australian specs., Marshall Islands, Ustt*3, Syria, Egypt, Nigeria, Chile, Guatemala, Venezuela, Costa Rica, Ecuador, Haiti, Bolivia, Colombia, Dominican Republic (LHD), Peru, B.Virgin, Curacao, Aruba, St.Martin
|
93
|
China
|
Recommended engine oil [ZY]
Item |
Specifications |
|||
---|---|---|---|---|
Europe |
Except Europe |
|||
Grade
|
API SL or ACEA A3/A5
|
API SL or ACEA A3
|
API SL/SM or ACEA A3/A5
|
API SG/SH/SJ/SL/SM or ILSAC GF-2/GF-3/GF-4
|
Viscosity (SAE)
|
5W-30
|
10W-40
|
5W-30, 5W-20, 10W-40
|
40, 30, 20W-20, 20, 10W-30, 10W-40, 10W-50, 20W-40, 15W-40, 20W-50, 15W-50, 5W-20, 5W-30, 5W-40
|
Remarks
|
Mazda genuine Dexelia oil e.g.
|
—
|
—
|
Recommended engine oil [Z6]
Item |
Specifications |
|||||
---|---|---|---|---|---|---|
Europe |
Russia and Except Europe |
|||||
Grade
|
API SL/SM or ACEA A3/A5
|
API SL/SM/SN or ACEA A3/A5
|
API SL/SM or ACEA A3/A5
|
API SG/SH/SJ/SL/SM/SN or ILSAC GF-2/GF-3/GF-4/GF-5
|
||
Viscosity (SAE)
|
5W-30
|
10W-40
|
0W-30
|
0W-20
|
5W-20
|
40, 30, 20W-20, 20, 10W-30, 10W-40, 10W-50, 20W-40, 15W-40, 20W-50, 15W-50, 5W-20, 5W-30, 5W-40, 0W-20, 0W-30
|
Remarks
|
Mazda genuine Dexelia oil e.g.
|
—
|
—
|

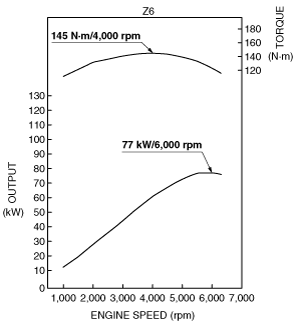

Engine Performance Curve
European (L.H.D. U.K.) specs.
