ON-BOARD DIAGNOSTIC WIRING DIAGRAM [ZY, Z6]

id0102c7122200

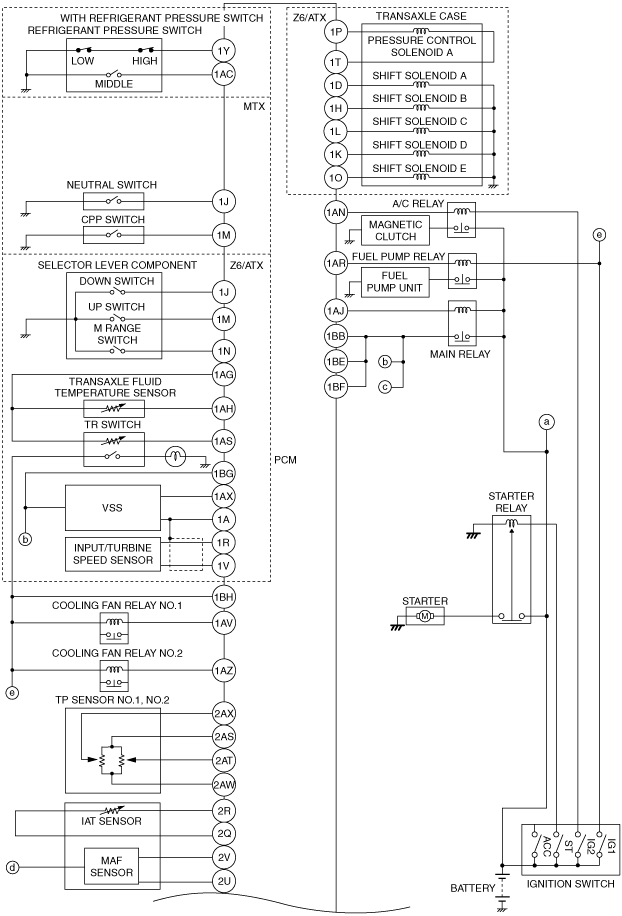

Without Immobilizer System

am3zzn00002931

am3zzw00008446

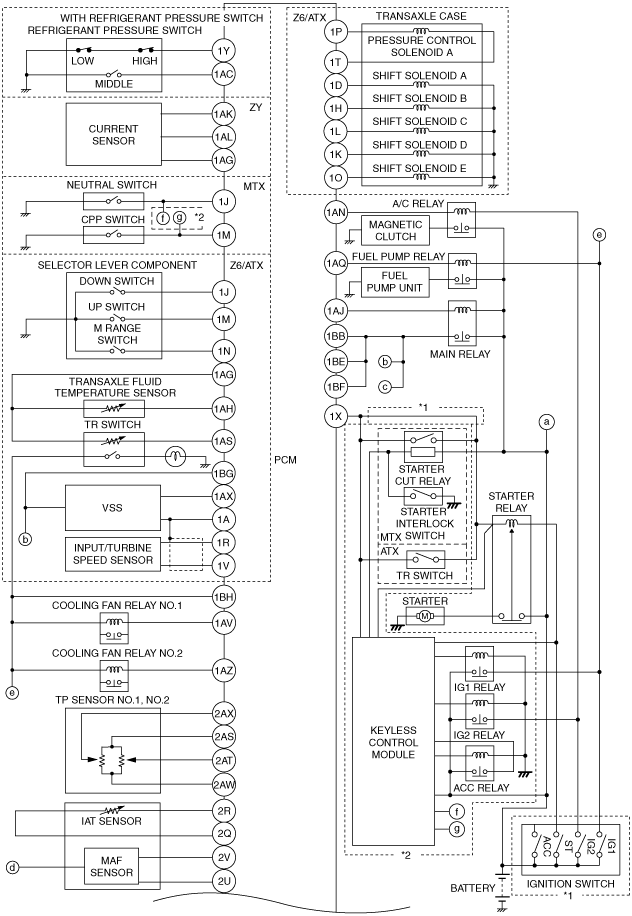

With Immobilizer System

am3zzn00002933

am3zzw00008448

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system
