ON-BOARD DIAGNOSTIC SYSTEM MALFUNCTION DISPLAY FUNCTION [ZY, Z6]


id0102c7142000


Outline

•  Illuminates the malfunction indicator lamp to notify the driver of a malfunction occurring in the engine control system.

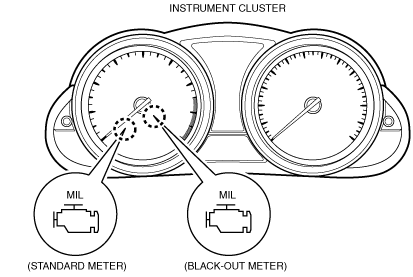

•  The malfunction indicator lamp is in the instrument cluster.
am3zzn00001904

Function

•  The malfunction indicator lamp illuminates when a malfunction occurs in the engine control system, and it illuminates at the same time a DTC is recorded in the PCM.
•  The illumination/non-illumination conditions of the malfunction indicator lamp are determined by the number of drive cycles. (See ON-BOARD DIAGNOSTIC SYSTEM TEST MODE [ZY, Z6].)
