ON-BOARD DIAGNOSTIC WIRING DIAGRAM [ZY, Z6]

id0102c7800100

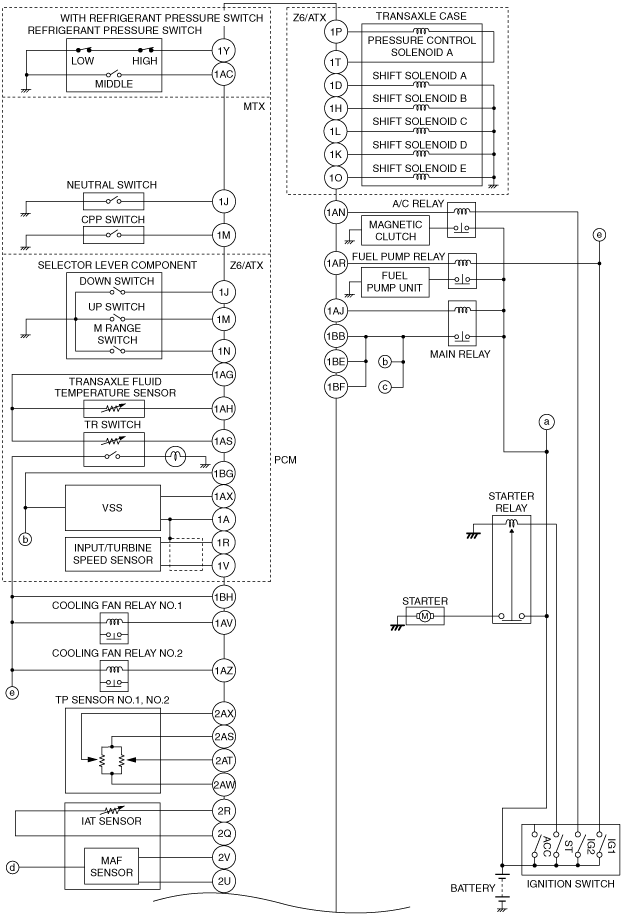

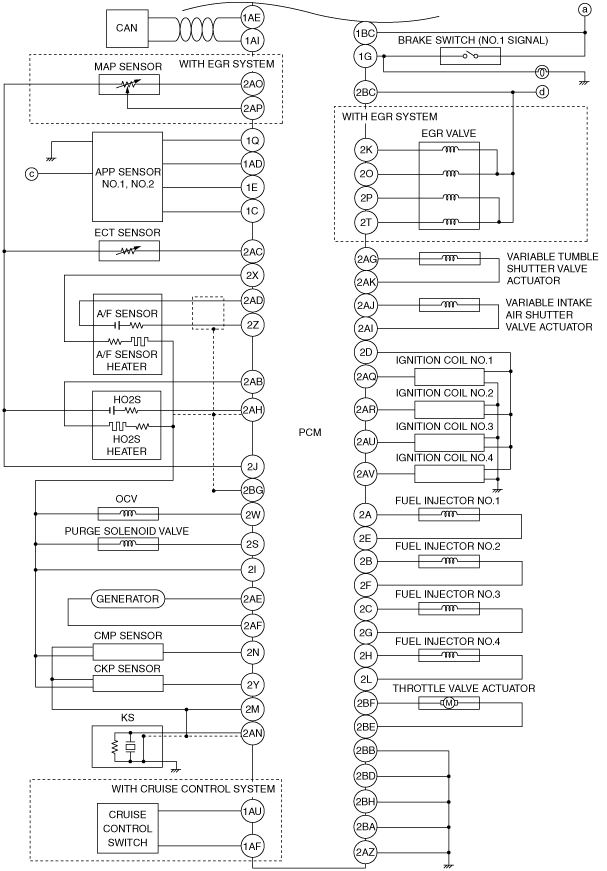

Without Immobilizer System

am3zzw00008445

am3zzw00008446

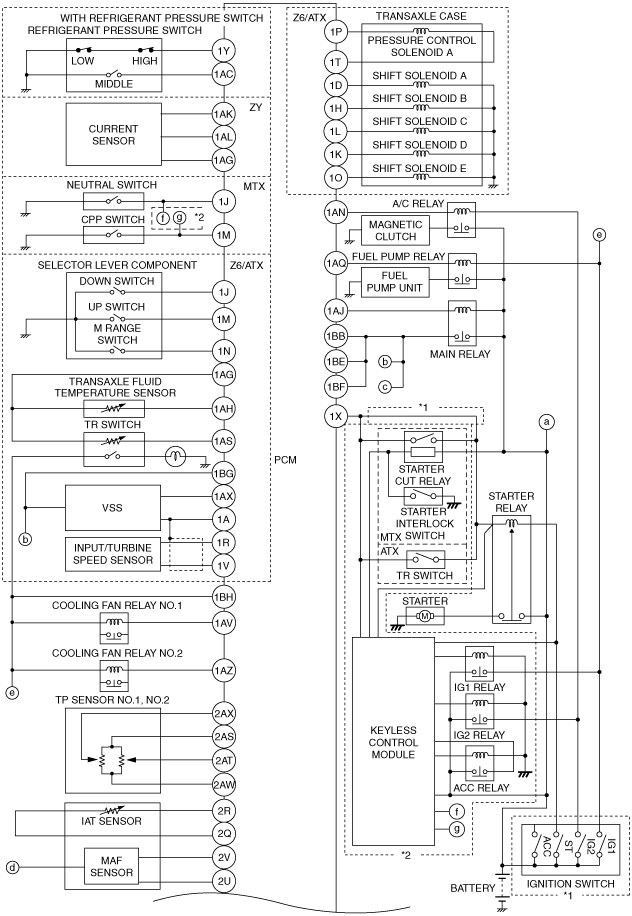

With Immobilizer System

am3zzw00008447

am3zzw00008448

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system
