DTC P0134:00 [MZR 2.0 DISI i-stop]
id0102d4702500
DTC P0134:00 |
A/F sensor circuit no activity detected |
---|---|
DETECTION CONDITION
|
• The PCM monitors the input voltage from the HO2S when the following conditions are met. If under the following monitoring conditions, the input voltage more than 3.22 V, the PCM determines that the A/F sensor is not activated.
MONITORING CONDITIONS
Diagnostic support note
• This is an intermittent monitor (A/F sensor, HO2S).
• The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
• PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle.
• FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
• The DTC is stored in the PCM memory.
|
POSSIBLE CAUSE
|
• A/F sensor looseness
• Leakage exhaust system

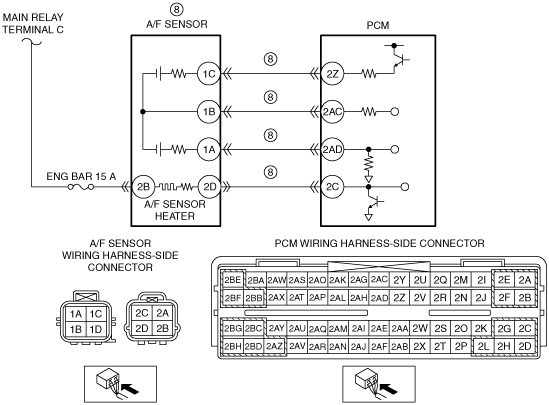

• Open circuit in wiring harness between the following terminals:
• A/F sensor malfunction
• Engine malfunction (Engine coolant leakage to combustion chamber)
• Insufficient engine compression
• PCM malfunction
|
![]() |
Diagnostic procedure
STEP |
INSPECTION |
ACTION |
|
---|---|---|---|
1
|
IDENTIFY TRIGGER DTC FOR FREEZE FRAME DATA (MODE 2)
• Perform the Freeze Frame PID Data Access Procedure.
• Is the DTC P0134:00 on FREEZE FRAME DATA (Mode 2)?
|
Yes
|
Go to the next step.
|
No
|
Go to the troubleshooting procedure for DTC on FREEZE FRAME DATA (Mode 2).
|
||
2
|
VERIFY FREEZE FRAME DATA (MODE 2)/SNAPSHOT DATA AND DIAGNOSTIC MONITORING TEST RESULTS HAVE BEEN RECORDED
• Have the FREEZE FRAME DATA (Mode 2)/snapshot data and DIAGNOSTIC MONITORING TEST RESULTS (A/F sensor, HO2S related) been recorded?
|
Yes
|
Go to the next step.
|
No
|
Record the FREEZE FRAME DATA (Mode 2)/snapshot data and DIAGNOSTIC MONITORING TEST RESULTS on the repair order, then go to the next step.
|
||
3
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
No
|
Go to the next step.
|
||
4
|
VERIFY RELATED PENDING CODE AND/OR DTC
• Switch the ignition to off, then to ON (engine off).
• Perform the Pending Trouble Code Access Procedure and DTC Reading Procedure.
• Is the PENDING CODE/DTC P2237:00 or P2251:00 also present?
|
Yes
|
Go to the applicable PENDING CODE or DTC inspection.
|
No
|
Go to the next step.
|
||
5
|
INSPECT A/F SENSOR
• Inspect the A/F sensor.
• Is there any malfunction?
|
Yes
|
Go to the next step.
|
No
|
Go to Step 9.
|
||
6
|
INSPECT INSTALLATION OF A/F SENSOR
• Inspect if the A/F sensor is loosely installed.
• Is the A/F sensor installed securely?
|
Yes
|
Go to the next step.
|
No
|
Retighten the A/F sensor securely, then go to Step 11.
|
||
7
|
INSPECT EXHAUST SYSTEM FOR GAS LEAKAGE
• Visually inspect for the exhaust gas leakage between intake manifold and A/F sensor.
• Is there any leakage?
|
Yes
|
Repair or replace the malfunctioning part according to the inspection results, then go to Step 11.
|
No
|
Go to the next step.
|
||
8
|
INSPECT A/F SENSOR CIRCUIT FOR OPEN CIRCUIT
• Switch the ignition to off.
• Disconnect the A/F sensor and PCM connectors.
• Inspect for continuity between the following terminals (wiring harness-side):
• Is there continuity?
|
Yes
|
Replace the A/F sensor, then go to Step 11.
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to Step 11.
|
||
9
|
INSPECT SEALING OF ENGINE COOLANT PASSAGE
• Perform the “ENGINE COOLANT LEAKAGE INSPECTION”.
• Is there any malfunction?
|
Yes
|
Repair or replace the malfunctioning part according to the inspection results, then go to Step 11.
|
No
|
Go to the next step.
|
||
10
|
INSPECT ENGINE COMPRESSION
• Inspect the engine compression.
• Is there any malfunction?
|
Yes
|
Repair or replace the malfunctioning part according to the inspection results, then go to the next step.
|
No
|
Go to the next step.
|
||
11
|
VERIFY DTC TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the M-MDS.
• Perform the Drive Mode 01 (PCM Adaptive Memory Produce Drive Mode) and the Drive Mode 03 (A/F sensor heater, HO2S heater, A/F sensor, HO2S, and TWC Repair Verification Drive Mode).
• Is the PENDING CODE for this DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the PCM.
Go to the next step.
|
No
|
Go to the next step.
|
||
12
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the “AFTER REPAIR PROCEDURE”.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
No
|
DTC troubleshooting completed.
|
