ON-BOARD DIAGNOSTIC OUTLINE [MZR-CD 2.2]

id0102f3100100

Features

To meet the EOBD regulations

•  Diagnostic test modes adopted

Improved serviceability

•  DTCs adopted

•  KOEO/KOER self-test function adopted

•  PID/DATA monitor function adopted

•  Active command mode function adopted

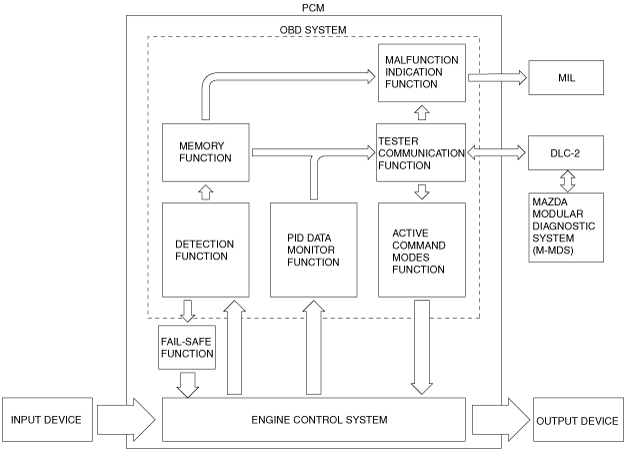

Block Diagram

am2zzn00000782

To meet the EOBD regulations	• Diagnostic test modes adopted
Improved serviceability	• DTCs adopted • KOEO/KOER self-test function adopted • PID/DATA monitor function adopted • Active command mode function adopted
