DTC P2454:00 [MZR-CD 2.2]

id0102f3153800

DTC P2454:00

Exhaust gas pressure sensor circuit low input
DETECTION CONDITION
•  The PCM monitors the input voltage from the exhaust gas pressure sensor while the engine is running. If the input voltage from the exhaust gas pressure sensor is less than 0.52 V, the PCM determines there is a malfunction in the exhaust gas pressure sensor circuit.
Monitoring condition
•  Battery voltage: 8—20 V
Diagnostic support note
•  The MIL illuminates if the PCM detects the above malfunction condition in first drive cycle.
•  PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
•  FREEZE FRAME DATA (mode2) and snapshot data are available.
•  The DTC is stored in the PCM memory.

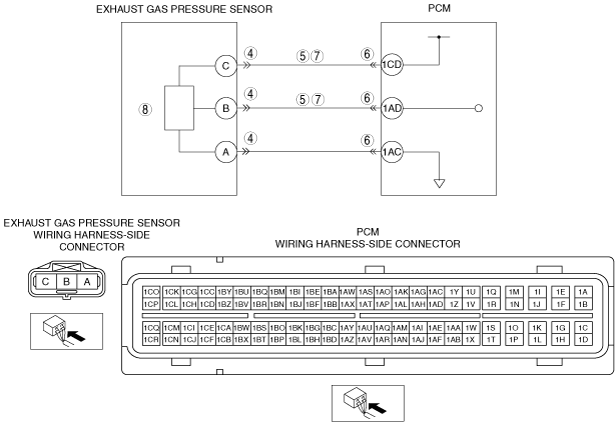

POSSIBLE CAUSE
•  Exhaust gas pressure sensor connector or terminal malfunction
•  Short to ground in wiring harness between exhaust gas pressure sensor terminal C and PCM terminal 1CD
•  Short to ground in wiring harness between exhaust gas pressure sensor terminal B and PCM terminal 1AD
•  PCM connector or terminal malfunction
•  Open circuit in wiring harness between exhaust gas pressure sensor terminal B and PCM terminal 1AD
•  Open circuit in wiring harness between exhaust gas pressure sensor terminal C and PCM terminal 1CD
•  Exhaust gas pressure sensor malfunction
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA (MODE2) OR SNAPSHOT DATA HAVE BEEN RECORDED
•  Have FREEZE FRAME DATA (mode2) or snapshot data been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA (mode2) and snapshot data on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to available Service Information.
•  If vehicle is not repaired, go to the next step.
No
Go to the next step.
3
VERIFY CURRENT SIGNAL STATUS: IS CONCERN INTERMITTENT OR CONSTANT?
•  Connect the M-MDS to the DLC-2.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Start the engine.
•  Is the PENDING CODE for this DTC present?
Yes
Go to the next step.
No
Intermittent concern exists.
Perform the “INTERMITTENT CONCERN TROUBLESHOOTING”.
(See INTERMITTENT CONCERN TROUBLESHOOTING [MZR-CD 2.2].)
4
INSPECT EXHAUST GAS PRESSURE SENSOR CONNECTOR FOR POOR CONNECTION
•  Switch the ignition to off.
•  Inspect for poor connection (such as damaged/pulled-out terminals, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the suspected terminal, then go to Step 9.
No
Go to the next step.
5
INSPECT EXHAUST GAS PRESSURE SENSOR SIGNAL CIRCUIT FOR SHORT TO GROUND
•  Switch the ignition to off.
•  Inspect for continuity between the following terminals and body ground:
―  Exhaust gas pressure sensor terminal B
―  Exhaust gas pressure sensor terminal C
•  Is there continuity?
Yes
Repair or replace the wiring harness for a short to ground, then go to Step 9.
No
Go to the next step.
6
INSPECT PCM CONNECTOR FOR POOR CONNECTION
•  Switch the ignition to off.
•  Inspect for poor connection (such as damaged/pulled-out terminals, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the suspected terminal, go to Step 9.
No
Go to the next step.
7
INSPECT EXHAUST GAS PRESSURE SENSOR CIRCUIT FOR OPEN
•  Switch the ignition to off.
•  Inspect for continuity between the following terminals:
―  Exhaust gas pressure sensor terminal B and PCM terminal 1AD
―  Exhaust gas pressure sensor terminal C and PCM terminal 1CD
•  Is there continuity?
Yes
Repair or replace the wiring harness for an open, then go to Step 9.
No
Go to the next step.
8
INSPECT EXHAUST GAS PRESSURE SENSOR
•  Inspect the exhaust gas pressure sensor.
•  Is there any malfunction?
Yes
Replace the exhaust gas pressure sensor, go to the next step.
(See EXHAUST GAS PRESSURE SENSOR/EXHAUST GAS PRESSURE CORRECTION TEMPERATURE SENSOR REMOVAL/INSTALLATION [MZR-CD 2.2].)
No
Go to the next step.
9
VERIFY TROUBLESHOOTING OF DTC P2454:00 COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Start the engine.
•  Is the PENDING CODE for this DTC present?
Yes
Replace the PCM, go to the next step.
(See PCM REMOVAL/INSTALLATION [MZR-CD 2.2].)
No
Go to the next step.
10
VERIFY AFTER REPAIR PROCEDURE
•  Perform the "AFTER REPAIR PROCEDURE".
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [MZR-CD 2.2].)
No
Troubleshooting completed.
