ON-BOARD DIAGNOSTIC OUTLINE [MZ-CD 1.6 (Y6) (EURO4 emission level)]

id0102g6100100

Features

To meet EOBD regulations

•  Diagnostic test modes adopted

Improved serviceability

•  DTCs adopted

•  PID/DATA monitor function adopted

•  Active command modes function adopted

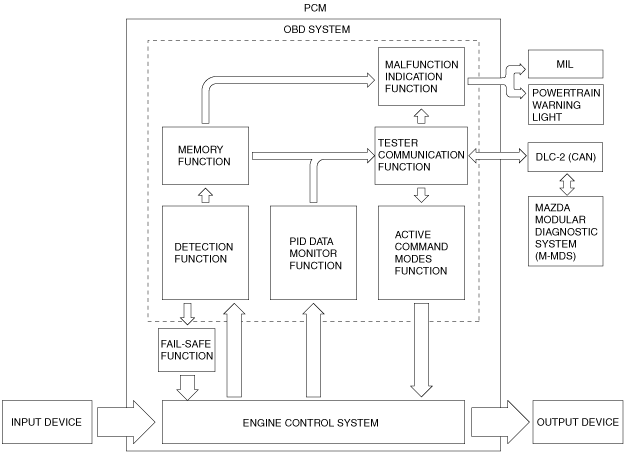

Block Diagram

am3zzn00001767

To meet EOBD regulations	• Diagnostic test modes adopted
Improved serviceability	• DTCs adopted • PID/DATA monitor function adopted • Active command modes function adopted
