FOREWORD [L3 Turbo]

id0103b4800300

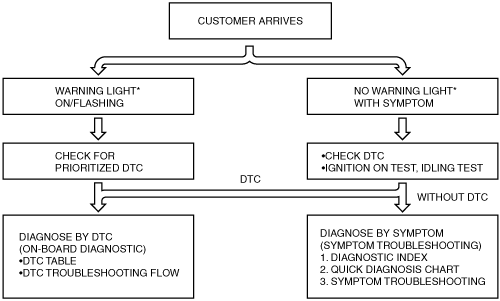

• When the customer reports a vehicle malfunction, check the malfunction indicator lamp (MIL) indication and diagnostic trouble code (DTC), then diagnose the malfunction according to the following flowchart:

― If a DTC exists, diagnose the applicable DTC inspection. (See DTC TABLE [L3 Turbo].)

― If no DTC exists and the MIL does not illuminate or flash, diagnose the applicable symptom troubleshooting. (See SYMPTOM DIAGNOSTIC INDEX [L3 Turbo].)

am3uuw00005861

*: Malfunction Indicator Lamp (MIL), Generator Warning Light, Security Light
