SYMPTOM TROUBLESHOOTING WIRING DIAGRAM [ZY, Z6]

id0103b9800100

Without Immobilizer System

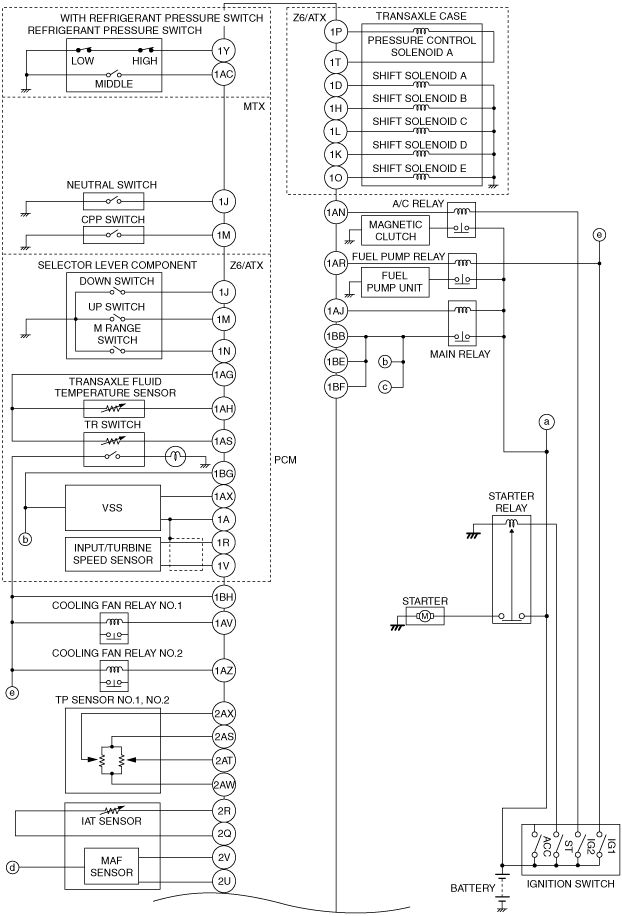

am3zzw00008449

am3zzw00008450

With Immobilizer System

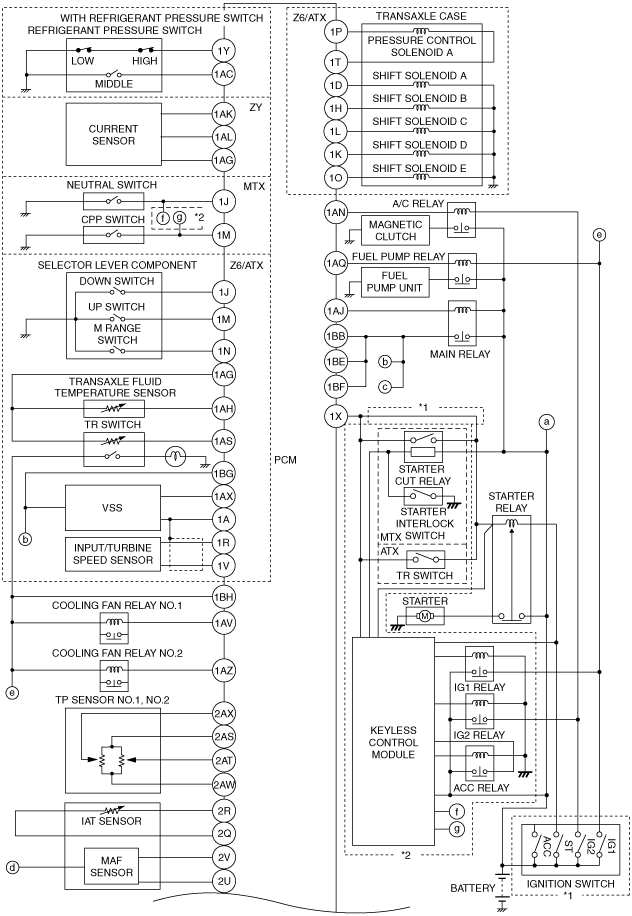

am3zzw00008451

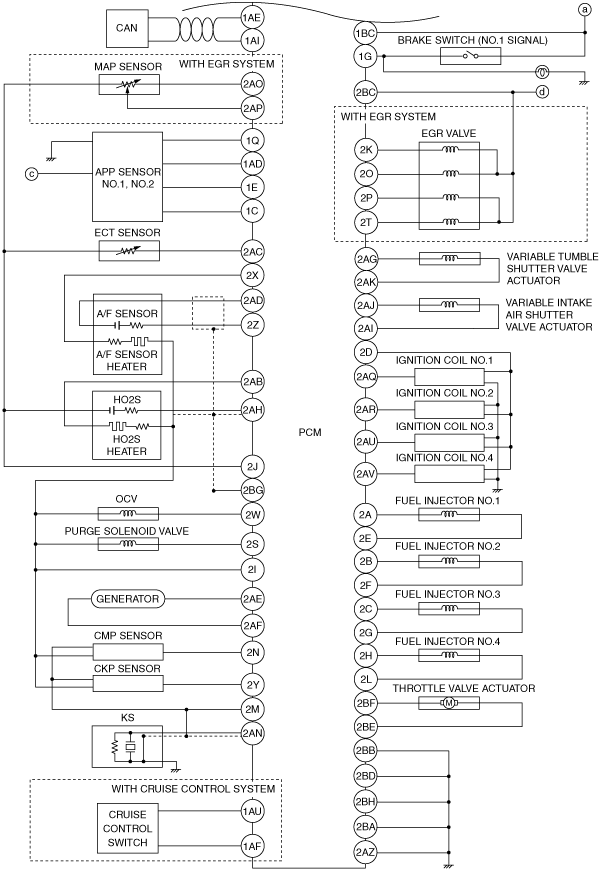

am3zzw00008452

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system
