MELTING OF MAIN OR OTHER FUSES
[TROUBLESHOOTING HINTS]

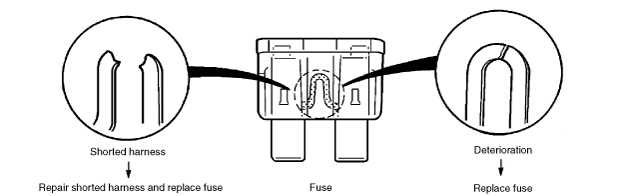

Inspect condition of fuse.
NO.1 MELTING OF MAIN OR OTHER FUSES [MZR-CD 2.2]
id0103f3800700
|
1 |
MELTING OF MAIN OR OTHER FUSES |
|---|---|
|
[TROUBLESHOOTING HINTS]
Inspect condition of fuse.
|
|
|
|
|
Damaged fuse |
Related wiring harness |
|---|---|
|
ENG MAIN
|
ENG MAIN fuse
• Main relay
• Glow plug relay
|
|
ENG BAR
|
ENG BAR fuse
• PCM
|
|
ENG BAR2
|
ENG BAR2 fuse
• PCM
|
|
ENG INJ
|
ENG INJ fuse
• MAF/IAT sensor
• Variable boost control solenoid valve
• EGR bypass valve
• A/F sensor heater
|
|
GLOW2
|
GLOW2 fuse
• GLOW1 fuse
• Glow plug
|
|
GLOW3
|
GLOW3 fuse
• GLOW1 fuse
• Glow plug
|
|
GLOW1
|
GLOW1 fuse
• PCM
|
|
BTN1
|
BTN1 fuse
• Hazard fuse
|
|
HAZARD
|
HAZARD fuse
• DLC-2
|
|
FAN2
|
FAN2 fuse
• Fan control module
|
|
F.WARM
|
F.WARM fuse
• Fuel warmer
|
|
STARTER
|
STARTER fuse
• Generator
• Starter
|
|
IG KEY2
|
IG KEY2 fuse
• Starter relay
|
|
ST SIG
|
ST SIG fuse
• Starter relay
|
|
STOP (with advance keyless entry and push button start)
|
STOP fuse
• Starter relay
|
|
ENG +B
|
ENG +B fuse
• PCM
• Main relay
|
|
ENG
|
ENG fuse
• PCM
|
