CYLINDER HEAD COVER CONSTRUCTION [MZR 2.0 DISI i-stop]


id011037100200

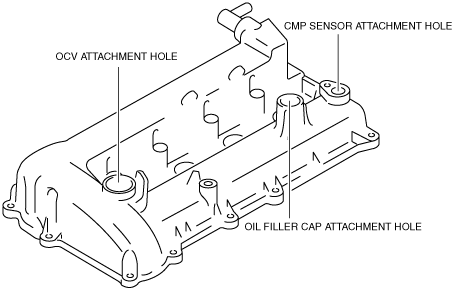

•  The cylinder head cover is made of integrated aluminum alloy, which is lightweight and sound absorbent.
•  The oil filler cap is a screw-in type. The boss for installing the camshaft position (CMP) sensor is provided at the rear of the cylinder head cover.
•  There is a hole for installing the oil control valve (OCV).
am3zzn00002544
