PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop]

id011037803900

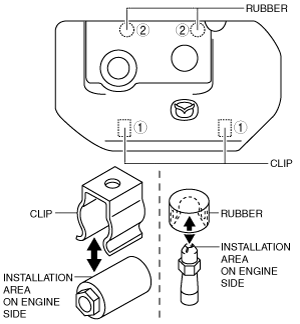

1.  Remove the plug hole plate in the order indicated in the figure.

Note

•  Lift off and remove the plug hole plate from the installation areas as shown in the figure.

am3zzw00007645

2.  Install the plug hole plate in the reverse order of removal.
