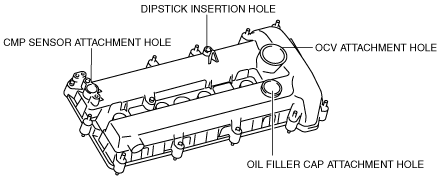

CYLINDER HEAD COVER CONSTRUCTION [LF, L5]


id0110a7100200

•  The cylinder head cover is made of integrated plastic, which is lightweight and sound absorbent.
•  The oil filler cap is a bayonet type.
•  The hole for installing the camshaft position (CMP) sensor is provided at the rear of the cylinder head cover.
•  There is a hole for installing the oil control valve (OCV).
•  A dipstick insertion hole has been equipped to the cylinder head cover.
am3uun00000328
