DRIVE BELT CONSTRUCTION [LF, L5]


id0110a7102500


LF

•  A drive belt composed of the generator drive belt and the A/C drive belt.
•  A drive belt auto tensioner with an embedded coil spring has been adopted to automatically maintain optimal drive belt tension.
•  With the adoption of stretch-type A/C drive belt, specified tension of the belt is maintained. Perform A/C drive belt removal/installation using the SST.
am3uun00000307

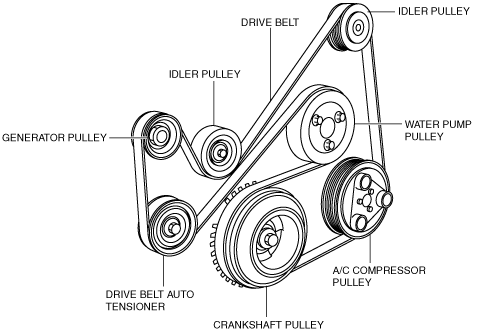

L5

•  A serpentine type drive belt with a V-ribbed belt to drive the supplemental units has been adopted. This shortens the engine length and improves serviceability.
•  A drive belt auto tensioner with an embedded coil spring has been adopted to automatically maintain the optimal drive belt tension.
am3uun00000459
