CRANKSHAFT SPROCKET CONSTRUCTION [LF, L5]

id0110a7120400

• High-strength chromium steel has been adopted for the crankshaft sprocket. Due to the carbonizing protection, abrasion resistance at all chain contact points is increased.

• The crankshaft sprocket consists of a timing chain sprocket and oil pump sprocket, which are integrated into a single unit.

• The keyway on the crankshaft sprocket, used to position the crankshaft during installation, has been eliminated.

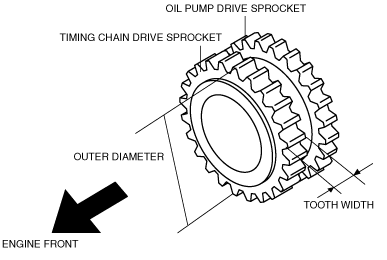

Timing Chain Drive Sprocket Specification.

ITEM	Specification
Outer diameter (mm {in})	About 47.95 {1.888}
Tooth width (mm {in})	About 7.35 {0.289}

Oil Pump Drive Sprocket Specification.

ITEM	Specification
Outer diameter (mm {in})	About 47.95 {1.888}
Tooth width (mm {in})	About 6.15 {0.242}
