OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [LF, L5]

id0110a7801300

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L5].)

2.  Disconnect the negative battery cable.

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [LF, L5].)

4.  Disconnect the wiring harness.

5.  Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [LF, L5].)

6.  Remove the ventilation hose.

7.  Remove the dipstick.

8.  Remove the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION [LF, L5].)

9.  Remove in the order indicated in the table.

10.  Install in the reverse order of removal.

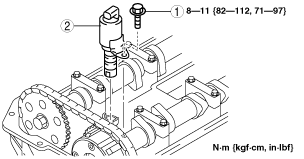

am3uuw00002365

1	OCV installation bolt
2	OCV
