DRIVE BELT AUTO TENSIONER INSPECTION [LF, L5]


id0110a7801700


LF

1.  Remove the generator drive belt with the A/C drive belt still installed and set it out of the way. (See DRIVE BELT REMOVAL/INSTALLATION [LF, L5].)

2.  Verify that the drive belt auto tensioner moves smoothly in the operational direction.

am3uuw00002266

•  If it does not move smoothly, replace the drive belt auto tensioner. (See ENGINE DISASSEMBLY/ASSEMBLY [LF, L5].)

3.  Turn the drive belt auto tensioner pulley by hand and verify that it rotates smoothly.

•  If it does not move smoothly, replace the drive belt auto tensioner. (See ENGINE DISASSEMBLY/ASSEMBLY [LF, L5].)

4.  Install the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [LF, L5].)


L5

1.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [LF, L5].)

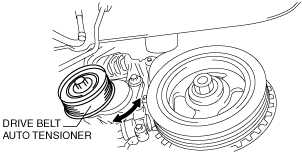

2.  Verify that the drive belt auto tensioner moves smoothly in the operational direction.

am3uuw00002165

•  Replace the drive belt auto tensioner if necessary. (See ENGINE DISASSEMBLY/ASSEMBLY [LF, L5].)

3.  Rotate the drive belt auto tensioner pulley by hand and verify that it rotates smoothly.

•  Replace the drive belt auto tensioner if necessary. (See ENGINE DISASSEMBLY/ASSEMBLY [LF, L5].)

4.  Install the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [LF, L5].)
