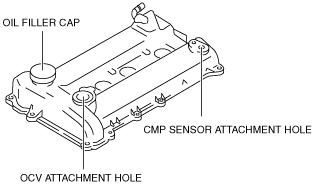

CYLINDER HEAD COVER CONSTRUCTION [L3 Turbo]


id0110b3100200

•  The cylinder head cover is made of integrated aluminum alloy, which is lightweight and sound absorbent.
•  The oil filler cap is a screw-in type.
•  The boss for installing the camshaft position (CMP) sensor is provided at the rear of the cylinder head cover.
•  There is a hole for installing the oil control valve (OCV).
am3uun00001421
