TIMING CHAIN, CHAIN TENSIONER CONSTRUCTION [L3 Turbo]
id0110b3101200

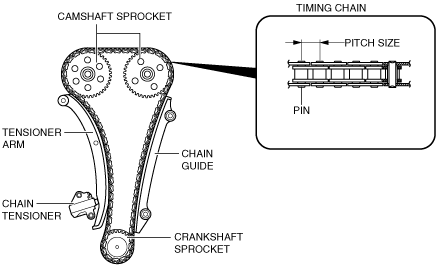

• A roller chain has been adopted in order to improve durability against high output and heavy loads.
• Engine oil through cylinder block and cylinder head lubricates the timing chain and each sprocket.
Timing chain specification
|
Item
|
Specification
|
|
Pitch size
|
(mm {in})
|
8 {0.3}
|
• An oil pressure type chain tensioner has been adopted for the timing chain tensioner. The tension of the timing chain is constantly maintained, using the oil pressure and the spring force in the chain tensioner.
• The oil pressure chain tensioner consists of a ratchet and rack that fixes the piston in place when the engine is started, and a piston and spring that push against the tensioner arm.
