ENGINE MOUNT OUTLINE [MZ-CD 1.6 (Y6) (EURO4 emission level)]


id0110e4101400

•  The pendulum-type layout of the engine mounting reduces noise in the cabin.
•  The engine is supported at three points to simplify engine mount composition.
•  An oil-filled No.3 engine mount rubber has been adopted to reduce noise and vibration in the cabin.
•  The surface of the No.3 engine mount is made of aluminium alloy to decrease weight.

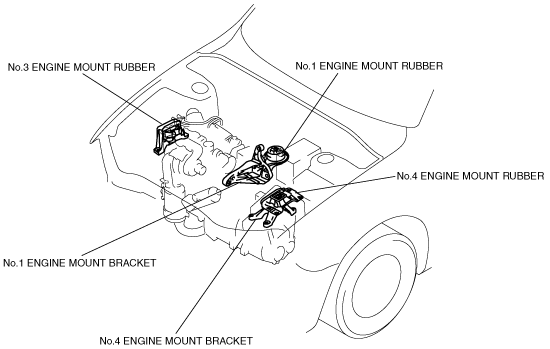

am3zzn00002530
