ENGINE COVER REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6) (EURO4 emission level)]

id0110e4804300

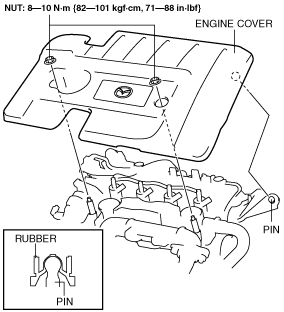

1.  Remove the nuts.

am3zzw00007461

2.  Pull the engine cover, and then remove the pin.

3.  Install the engine cover.
