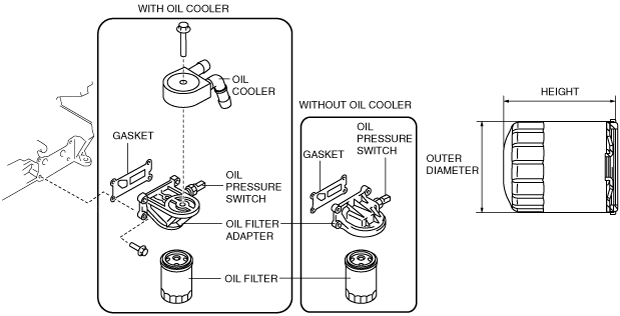

•  The oil filter component is installed on the left surface (vehicle front) of the cylinder block.

•  An aluminum oil filter adapter has been adopted for weight reduction. The oil pressure switch and oil cooler are installed on the oil filter adapter.

•  The oil filter is a full-flow paper element type with an outer diameter of 76.0 mm {2.99 in} and height of 94.0 mm {3.70 in}.
