OIL PUMP CONSTRUCTION [L3 Turbo]
id0111b4100600
• The oil pump is installed inside the engine front cover. The crankshaft drives the inner rotor through the oil pump chain and oil pump driven sprocket.
• The oil pump component consists of the oil pump body, oil pump driven sprocket, oil pump chain, oil pump chain guide, and oil pump chain tensioner.
• A trochoid gear has been adopted on the oil pump.
• The oil pump consists of the inner and outer rotors, relief valve, and oil pump body.
• The oil pump cannot be disassembled. If there is an oil pump malfunction, replace it as a single unit.
Oil pump specification
|
Item
|
Engine speed [rpm]
|
Specification (kPa {kgf/cm2, psi})
|
|
Oil discharge pressure (reference value)
[Oil temperature: 100°C {212°F}]
|
1,500
|
156—363 {1.59—3.70, 22.7—52.6}
|
|
3,000
|
297—551 {3.03—5.61, 43.1—79.9}
|

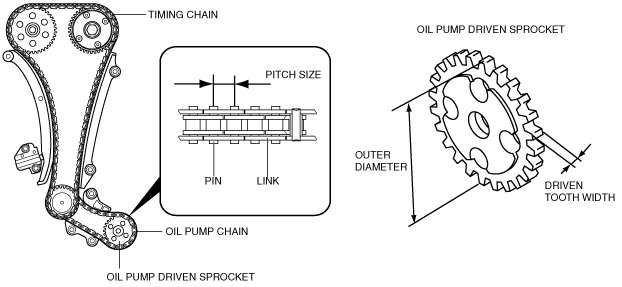

• A bush chain has been adopted for the oil pump chain, improving durability during high-output or high-load operation.
• The engine oil in the engine front cover lubricates the oil pump chain. Wear resistance has been improved by furnace hardening the pins constructing the oil pump chain.
• The teeth of the sintered material in the oil pump driven sprocket have been induction hardened to improve durability.
Oil pump chain, oil pump driven sprocket specification
|
Item
|
Specification (mm {in})
|
|
Oil pump chain
|
Pitch size
|
7 {0.3}
|
|
Oil pump driven sprocket
|
Outer diameter
|
52 {2.0}
|
|
Driven tooth width
|
3.1 {0.12}
|
