FAN CONTROL MODULE CONSTRUCTION/OPERATION [MZR 2.0 DISI i-stop]

id011237100600

Construction

• Fan control module is installed on the radiator cowling.

am3uun00000984

Operation

• The fan control module drives the cooling fan motor based on the cooling fan control signals sent by the PCM. (See ELECTRICAL FAN CONTROL OUTLINE [MZR 2.0 DISI i-stop].)

• The fan control module allows continuously variable control of the cooling fan motor rotation rate, reducing fan operation noise and power consumption.

• Based on the input signals from the control parts, the cooling fan may remain operational for several seconds or minutes after the ignition is switched off. (See ELECTRICAL FAN CONTROL OUTLINE [MZR 2.0 DISI i-stop].)

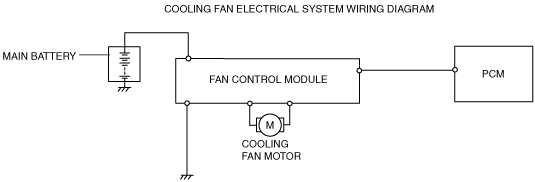

am3zzn00002754

Fail-safe function

The fan control module has a power supply function to operate the cooling fan motor and the following protection functions.

1. Over-current fail-safe

― If current to the cooling fan motor exceeds the specified value, the fan control module stops the cooling fan motor for a specified period of time.

2. Over heat fail-safe

― If the internal area of the fan control module exceeds the specified temperature, the fan control module stops the cooling fan motor for a specified period of time.

3. Input signal open circuit fail-safe

― If there is an open circuit in the wiring harness between the PCM and the fan control module, the fan control module stops the cooling fan motor.

4. Reversed polarity fail-safe

― If there is a reversed power connection, the fan control module incorporates protection against reversed polarity. The motor reacts to reversed connections with unregulated, high-speed rotation in the opposite direction.
