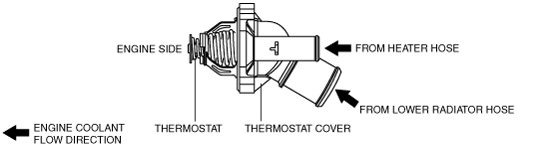

•  A wax-type thermostat with a jiggle-pin has been adopted.

•  When the engine coolant temperature reaches 80—84°C {176—183°F}, the valve starts opening to allow engine coolant to flow from the radiator stabilizing the engine coolant temperature. When the engine coolant temperature decreases to approx. 75°C {167°F}, the valve closes to stop the engine coolant flow from the radiator.
