WATER PUMP CONSTRUCTION/OPERATION [MZ-CD 1.6 (Y6)]


id0112c3100400

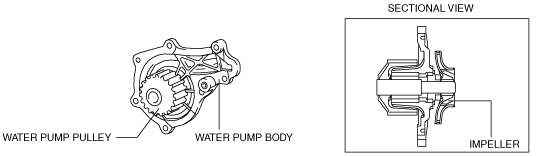

Construction

•  The water pump is constructed of a aluminium alloy body with a plastic impeller and steel drive pulley.
•  The water pump inlet and outlet ports are contained within the engine block, so minimizing the depth of the water pump body.
am3zzn00002758

Operation

•  The water pump is driven by the timing belt.
