FUEL SYSTEM STRUCTURAL VIEW [LF, L5]

id0114a7100200

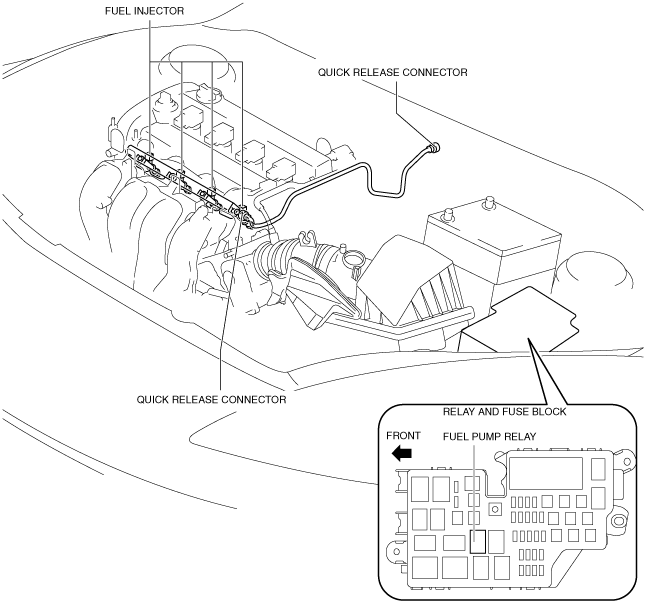

Engine Compartment Side

am3uun00000433

Fuel Tank Side

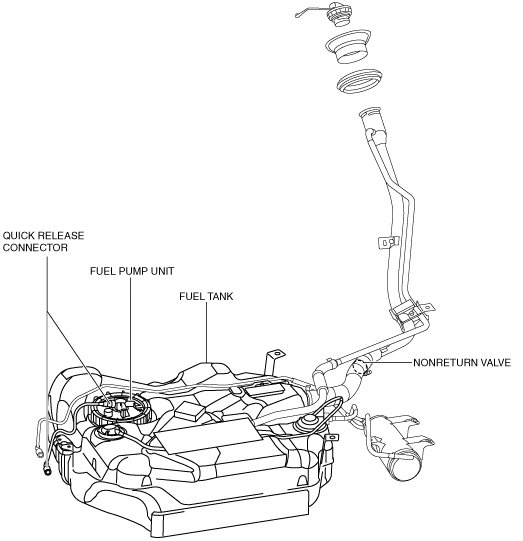

LF (Fuel filter (high-pressure) is a built-in type in fuel pump unit)

am3zzn00002658

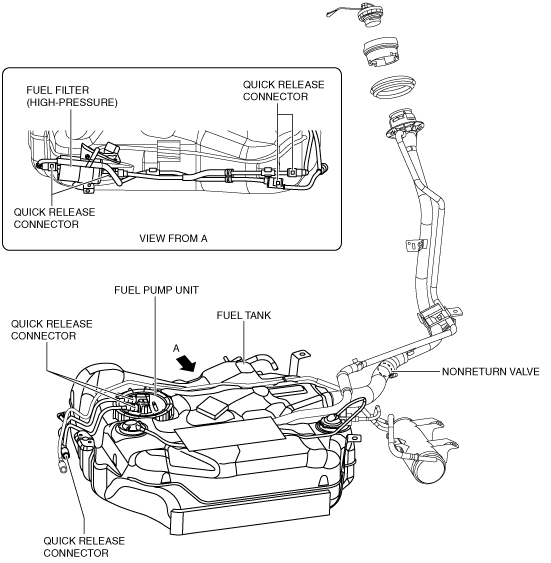

LF (Fuel filter (high-pressure) is not a built-in type in fuel pump unit)

am3zzn00002659

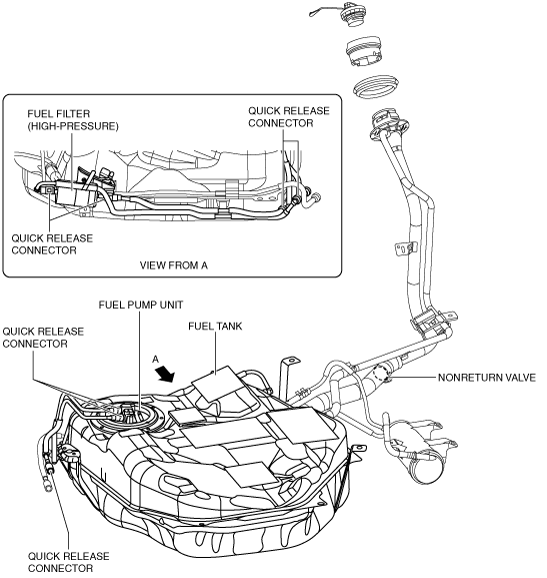

L5

am3zzn00002660
