FUEL SYSTEM STRUCTURAL VIEW [ZY, Z6]

id0114b0100200

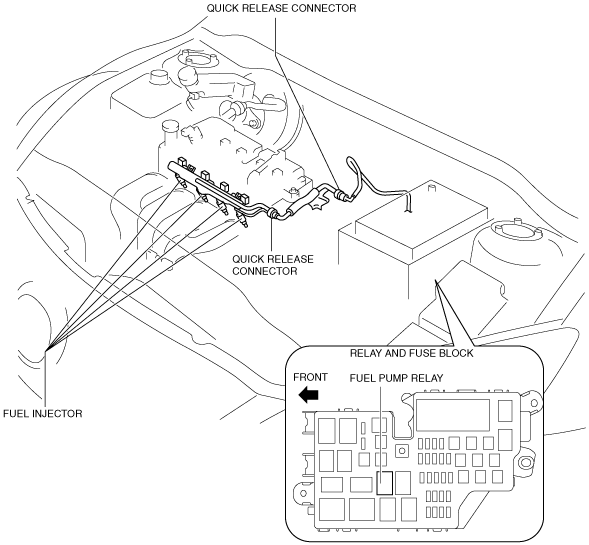

Engine Compartment Side

am3zzn00001864

Fuel Tank Side

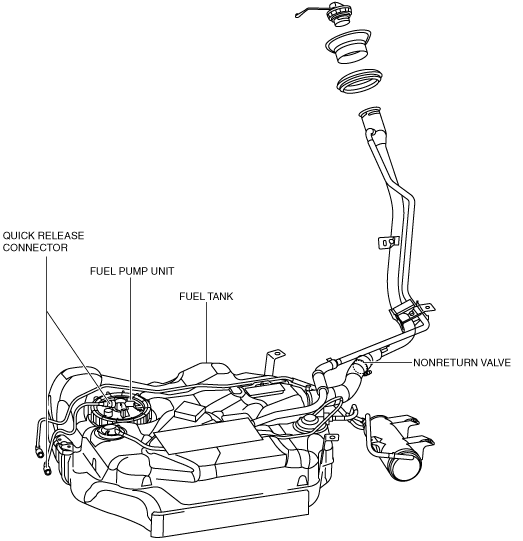

Fuel filter (high-pressure) is a built-in type in fuel pump unit

am3zzn00001865

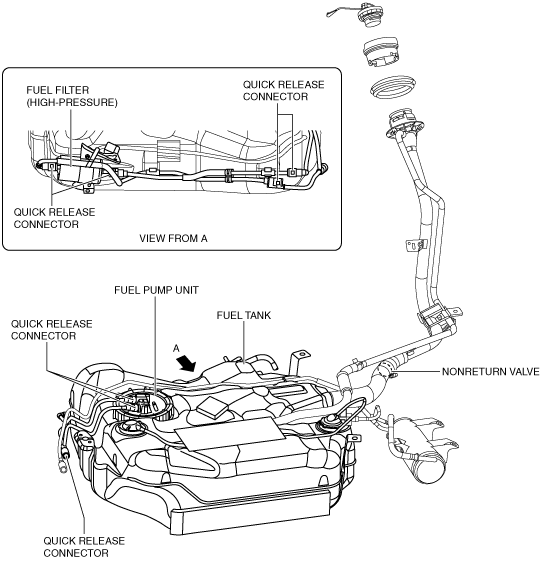

Fuel filter (high-pressure) is not a built-in type in fuel pump unit

am3zzn00002663
