FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [ZY, Z6]

id0114b0801000

1.  Remove the fuel pump unit. (See FUEL PUMP UNIT REMOVAL/INSTALLATION [ZY, Z6].)

2.  Disassemble the fuel pump unit and fuel gauge sender unit.

3.  Assemble the fuel pump unit and fuel gauge sender unit.

Fuel filter (high-pressure) is a built-in fuel pump unit.

am3zzw00008694

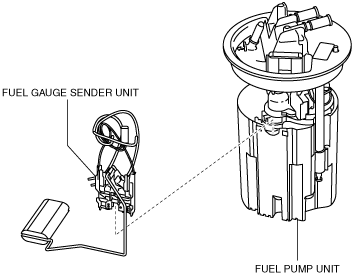

Fuel filter (high-pressure) is not a built-in fuel pump unit.

am3zzw00008695
