DIRECT FUEL INJECTION SYSTEM CONSTRUCTION/OPERATION [L3 Turbo]

id0114b4100500

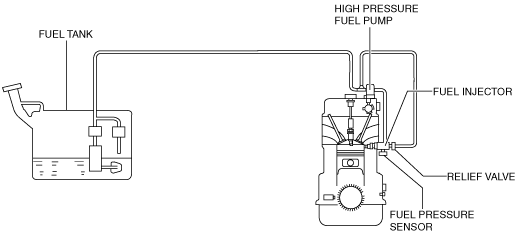

Construction

•  The direct fuel injection system consists of a high pressure fuel pump, fuel injectors fuel pressure sensor, and a relief valve.
am3uun00001314

Operation

•  Fuel is injected during the intake process and diffused uniformly in the combustion chamber by the flow of intake air.
•  Fuel injection timing is explained in CONTROL SYSTEM and FUEL INJECTION CONTROL. (See FUEL INJECTION CONTROL OUTLINE [L3 Turbo].) (See FUEL INJECTION CONTROL BLOCK DIAGRAM [L3 Turbo].) (See FUEL INJECTION CONTROL OPERATION [L3 Turbo].)
