FUEL FILTER COMPONENT REMOVAL/INSTALLATION [MZR-CD 2.2]
id0114f2777800
L.H.D.
1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)
2. Complete the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [MZR-CD 2.2].)
3. Remove in the order indicated in the table.
With fuel warmer
am3zzw00005135
|
|
1
|
Fuel warmer connector
|
|
2
|
Fuel warmer
|
|
3
|
Fuel hose
|
|
4
|
Fuel filter bracket
|
|
5
|
Fuel filter component
|
Without fuel warmer

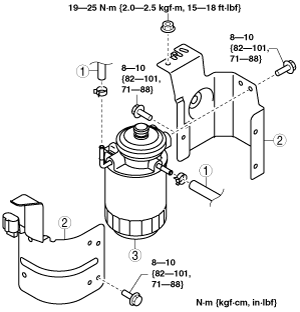

am3zzw00005136
|
|
1
|
Fuel hose
|
|
2
|
Fuel filter bracket
|
|
3
|
Fuel filter component
|
4. Install in the reverse order of removal.
5. Complete the “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [MZR-CD 2.2].)
6. Start the engine and verify that fuel dose not leak from the fuel system.
Fuel filter bracket removal note
1. Remove the fuel filter bracket and fuel filter as a single unit.
2. Remove the fuel filter bracket.
R.H.D.
1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)
2. Complete the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [MZR-CD 2.2].)
3. Remove in the order indicated in the table.

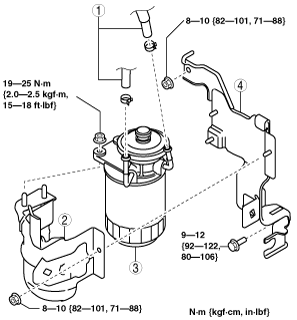

am3zzw00005137
|
|
1
|
Fuel hose
|
|
2
|
Fuel filter bracket No.1
|
|
3
|
Fuel filter component
|
|
4
|
Fuel filter bracket No.2
|
4. Install in the reverse order of removal.
5. Complete the “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [MZR-CD 2.2].)
6. Start the engine and verify that fuel dose not leak from the fuel system.
Fuel filter bracket No.1 removal note
1. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)
2. Remove the fuel filter bracket No.1 and fuel filter component as a single unit.
3. Remove the fuel filter bracket No.1.
