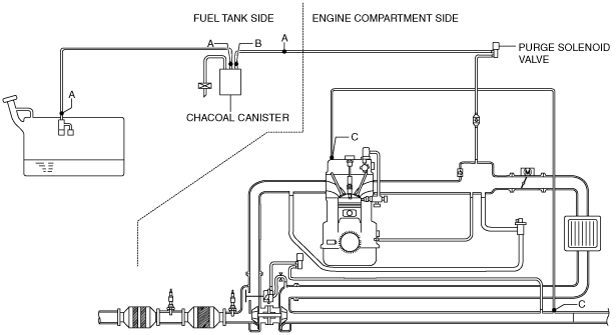

•  There are three types of quick release connectors.

•  Multiple SSTs are used with this type.

am3uun00001379

am3uun00001380

•  Consists of a retainer and O-ring. The quick release connector is integrated with the evaporative hose and therefore cannot be disassembled.

•  To connect the quick release connector properly, push it into the evaporative pipe until a locking click sound is heard.

•  New quick release connectors are fitted with a checker tab that prevent improper installation. This checker tab cannot normally be removed. When the quick release connector is properly connected to the evaporative pipe, the lock is released and the checker tab comes off. Due to this, it can be verified that the quick release connector is completely connected.

•  An SST is not used with this type.

•  Mainly consists of a retainer and O-ring. The quick release connector is integrated with the evaporative hose and therefore cannot be disassembled.

•  When the quick release connector is connected, the evaporative pipe projection is locked at the clamp lock point. To release the quick connector lock for each type, follow the procedure in the order shown in each figure.

•  An SST is not used with this type.

•  The connector can be disconnected by pinching the retainer tab pulling the connector.

am3zzn00003016

•  To connect the quick release connector properly, push it into the pipe until a locking click sound is heard.

•  New quick release connectors are fitted with a checker tab that prevents improper fit. This checker tab cannot normally be removed. When the quick release connector is properly connected to the pipe, the lock is released and the checker tab comes off. Due to this, it can be verified that the quick release connector is completely connected.
