AIR FILTER REMOVAL/INSTALLATION [L3 Turbo]

id0116b4832300

1.  Remove the fuel-filler pipe protector. (See FUEL TANK REMOVAL/INSTALLATION [L3 Turbo].)

2.  Remove in the order indicated in the table.

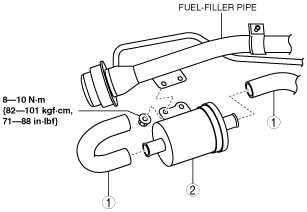

am3uuw00002251

1	Evaporative hose
2	Air filter

3.  Install in the reverse order of removal.
