EGR COOLER BYPASS VALVE CONSTRUCTION/OPERATION [MZR-CD 2.2]

id0116f2299300

Construction

• Consists of the valve, shaft and so forth.

am6zzn00001481

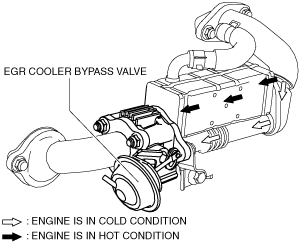

Operation

• In the cooling-down period, the EGR gas avoids the EGR cooler side aisle in order to inhibit the deterioration of CO and HC caused by over cooled EGR gas.

• In the warming-up period, the EGR gas passes through the EGR cooler side aisle to cut down on NO_X.

am6zzn00001482
