IGNITION COIL REMOVAL/INSTALLATION [ZY, Z6]

id0118a0800200

1.  Remove the battery cover.(See BATTERY REMOVAL/INSTALLATION [ZY, Z6].)

2.  Disconnect the negative battery cable.

3.  Perform the following procedure.

Except European (U.K.) specs.

1.  Remove the fresh-air duct and air cleaner as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZY, Z6].)

European (U.K.) specs.

1.  Set the air cleaner cover out of the way. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZY, Z6].)

2.  Remove the fresh-air duct and air cleaner case as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [ZY, Z6].)

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

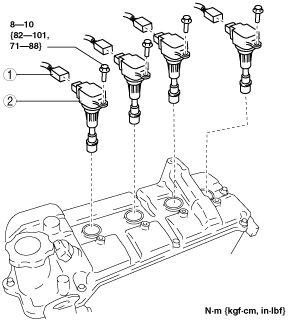

am2zzw00001729

1	Connector
2	Ignition coil
