•  Installed to the engine front cover.

am3zzn00001801

•  A GMR element-type sensor has been installed.

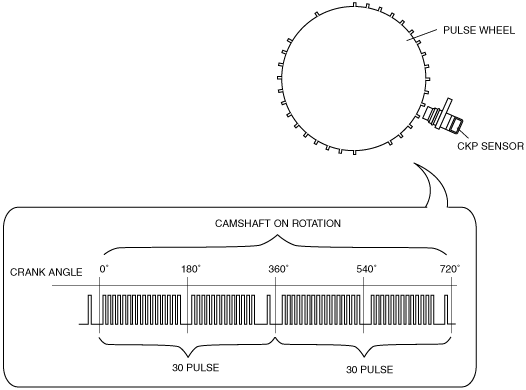

•  The crankshaft rotation angle, which fluctuates according to the rotation angle of the camshaft on the intake side, is output as voltage that has been changed to a rectangular wave form by the processing circuit.

am3zzn00001766
