•  Installed to the cylinder head cover.

am3zzn00001802

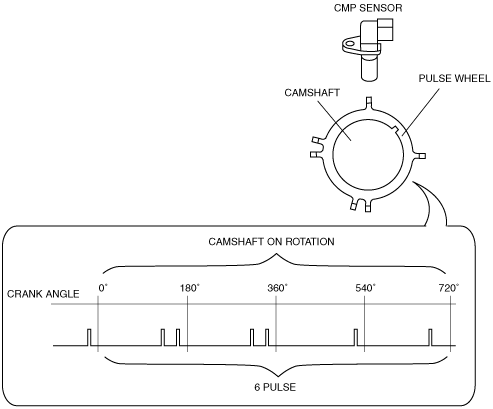

•  A GMR element-type sensor has been adopted.

•  The resistance value, which fluctuates according to the rotation angle of the camshaft on the intake side, is output as voltage that has been changed to a rectangular wave form by the processing circuit.

am3zzn00001765
